Wilwood Dual Floor-Mounted Pedal Assembly

Wilwood Disc Brakes offers a selection of forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal. Designed for use with Wilwood’s aluminum tandem or composite master cylinders, Wilwood brake/clutch pedal assemblies are made from lightweight aluminum and are designed for easy mounting and smooth, reliable operation.

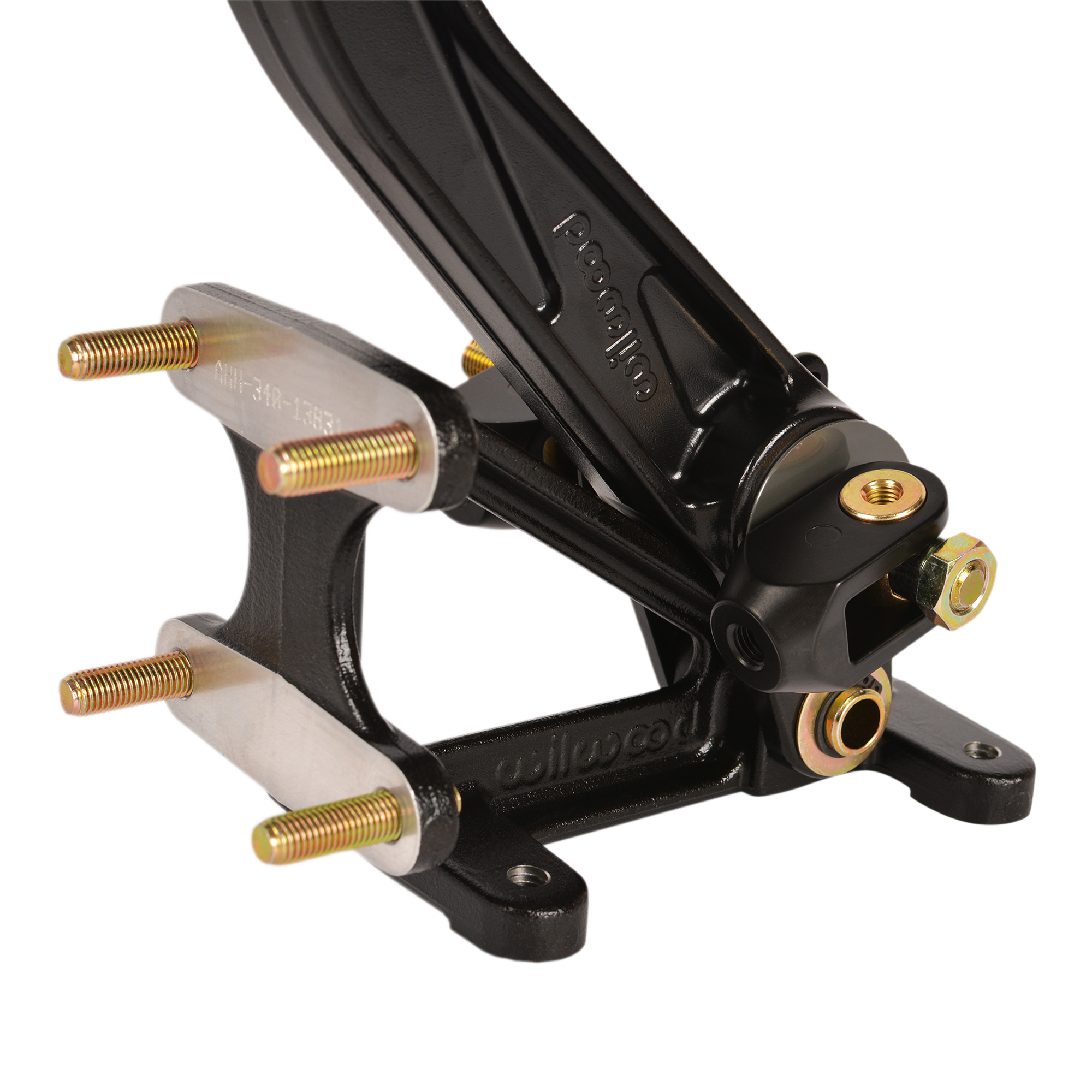

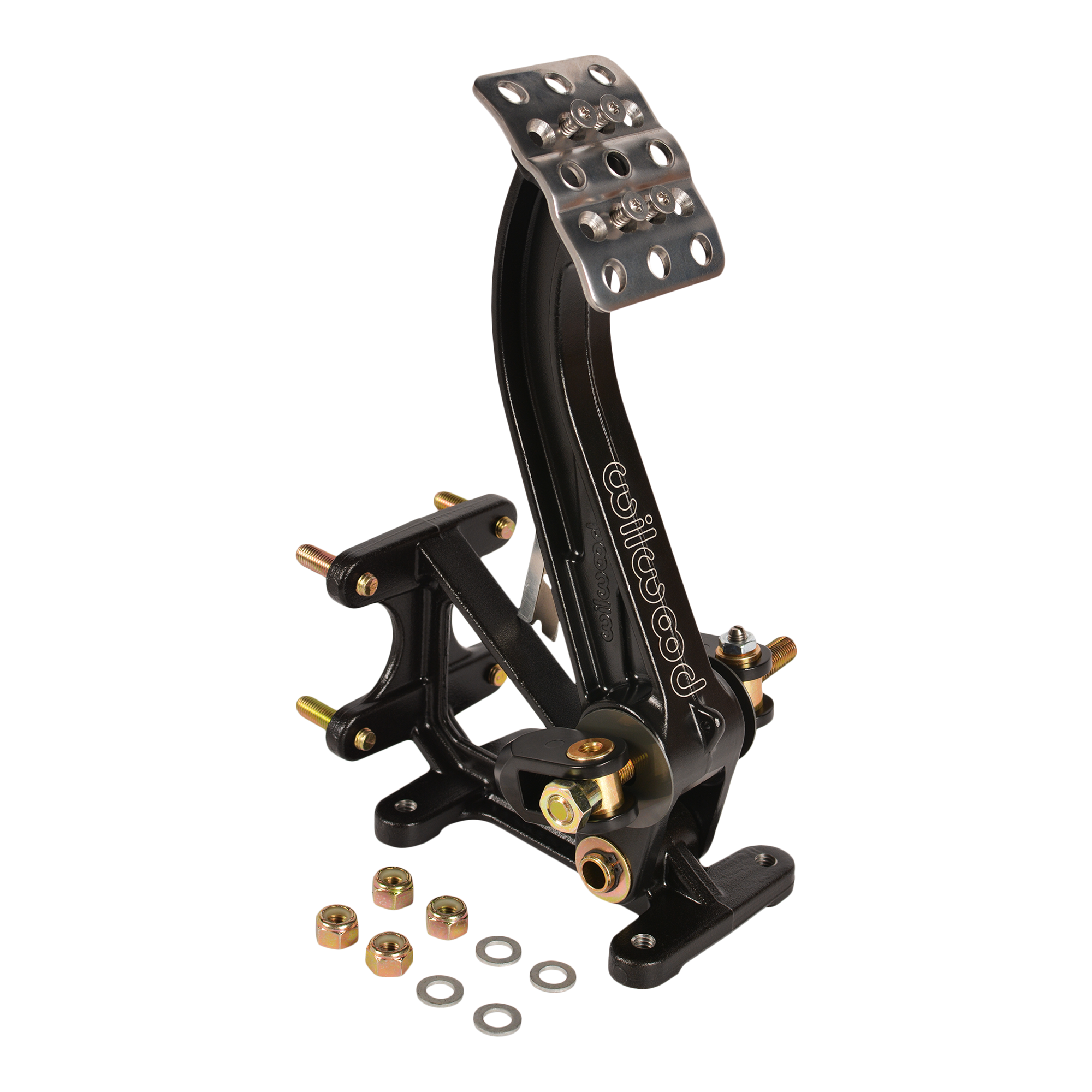

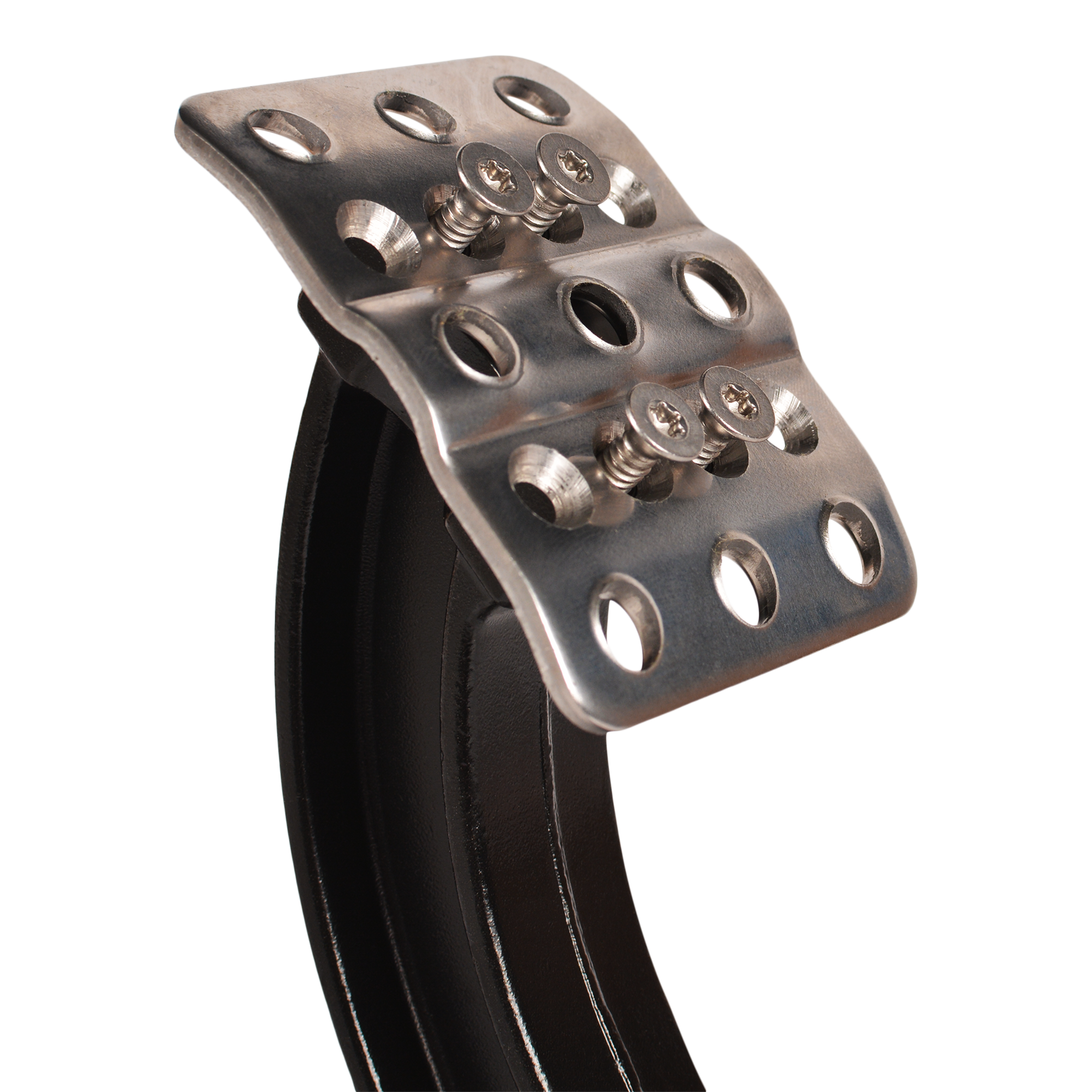

This floor mount pedal assembly mounts two single outlet brake master cylinders in a forward position outside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional Brake Bias remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders.
