Quarter Master^® offers a wide variety of aluminum bell housing kits using 5½″ and 7¼″ diameter clutches. Designed with the latest FEA software, the aluminum bellhousing is the stiffest component possible designed to improve the stress-bearing points. The design greatly improves clutch-spline wear, eliminates flexing, ensures proper clutch alignment to the transmission and pilot bearing and decreases wear on internal transmission components.

This bellhousing offers superior ground clearance and ergonomics, allowing increased passage for various header configurations. Other significant features include lightweight CNC-machining and stiffening ribs on top of the bellhousing for increased durability.

Kits are designed with V-Drive or Optimum-V Clutches. Numerous splines and configurations are also available. In addition to these options, the kits can be configured with either a Tri-Lite Hydraulic or floating throwout bearing.

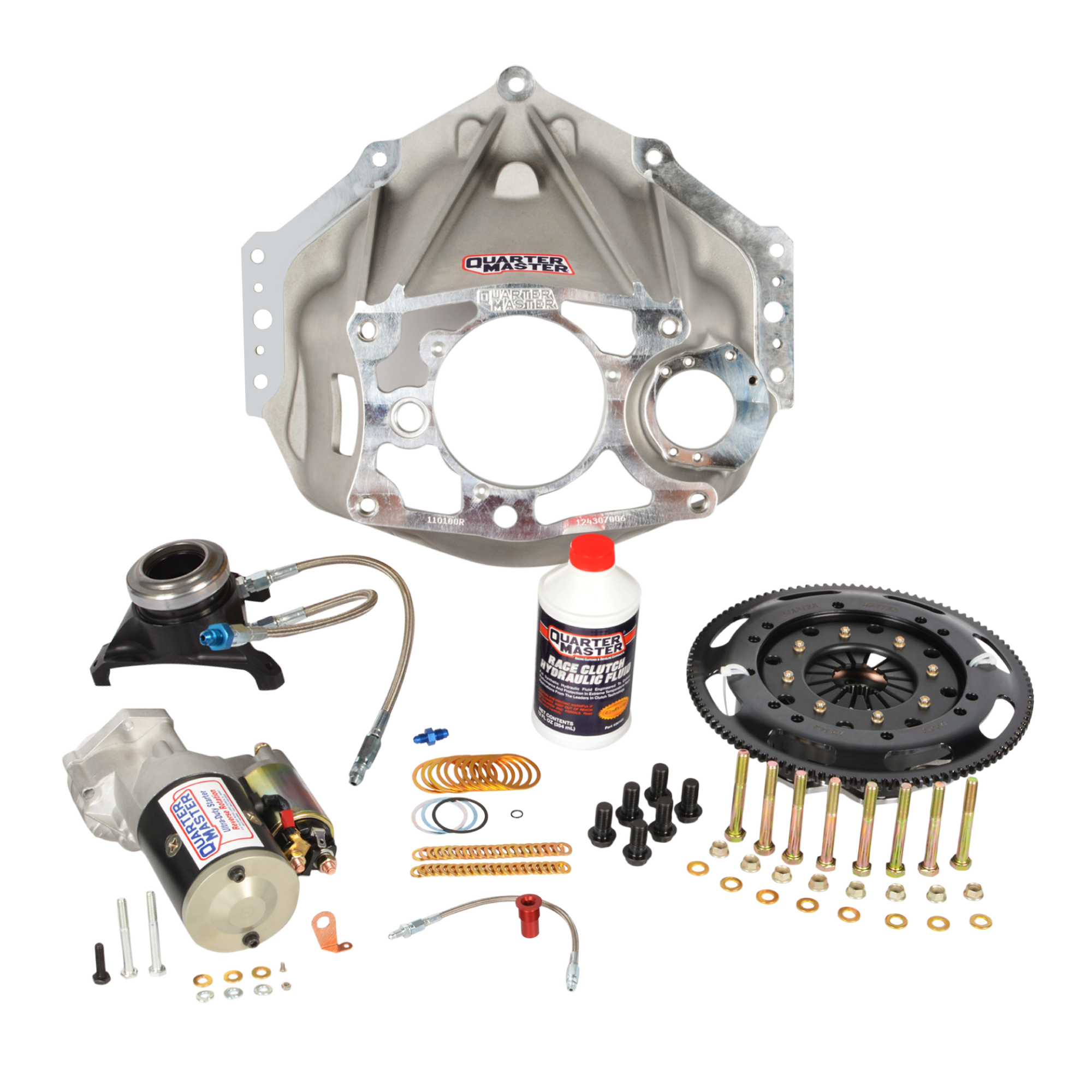

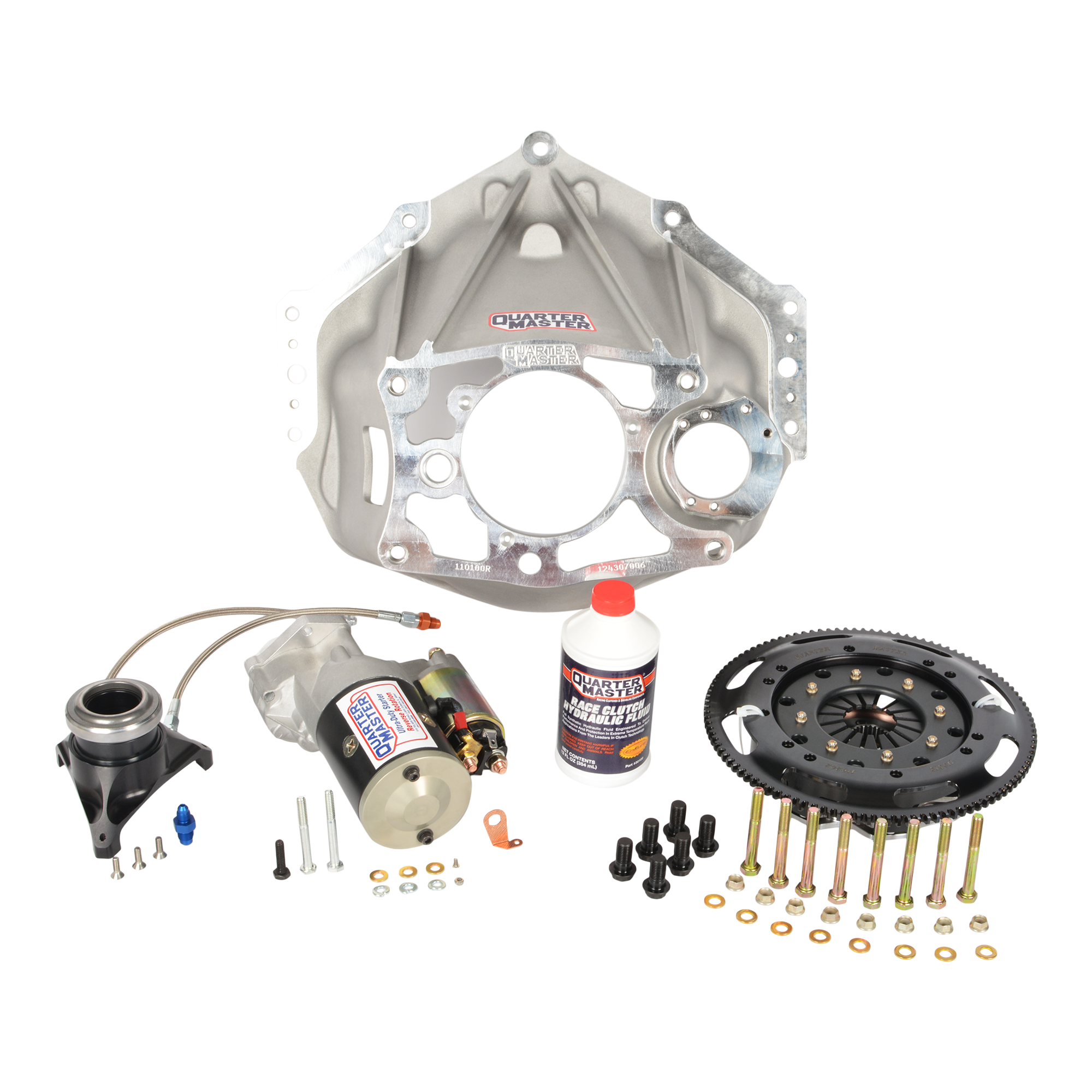

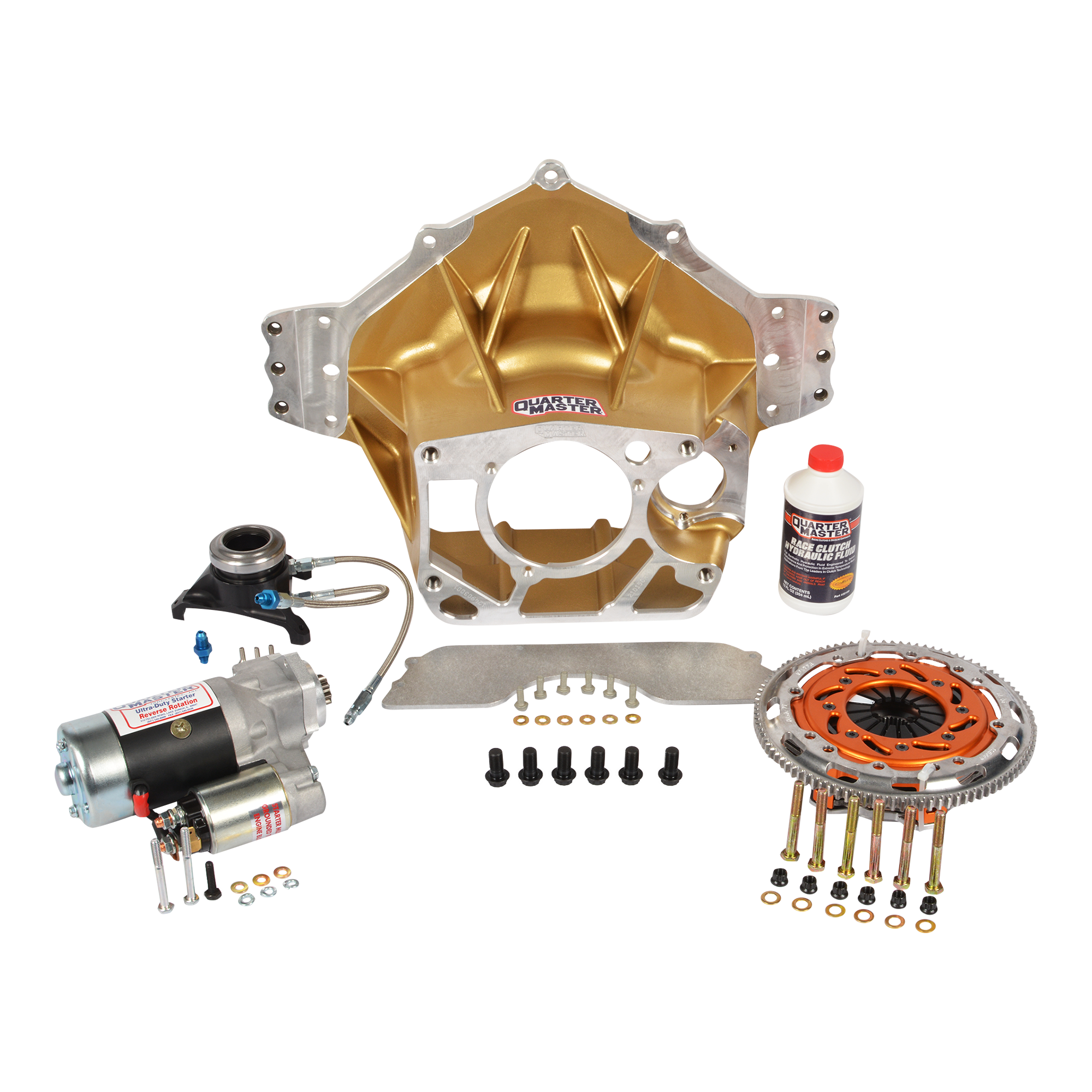

Kit Includes:

• Aluminum Bellhousing (For Reverse-Mount Starter)
• Ultra-Duty™ Starter (Reverse Mount / Reverse Rotation)
• 710-Series Hydraulic Floating Throwout Bearing (1¾″ Contact) or Tri-Lite Hydraulic Release Bearing
• V-Drive or Optimum-V (5½″)
• Button Flywheel
• Ring Gear for 5½″ V-Drive or Optimum-V
• Ring Gear Spacer for 2-Disc or 3-Disc 5½″ Clutches
• Flywheel Bolt Kit; Fits Chevy, Ford, & Dodge w/ 6-Bolt Crank
• Race Clutch Hydraulic Fluid (12 oz. Bottle)
