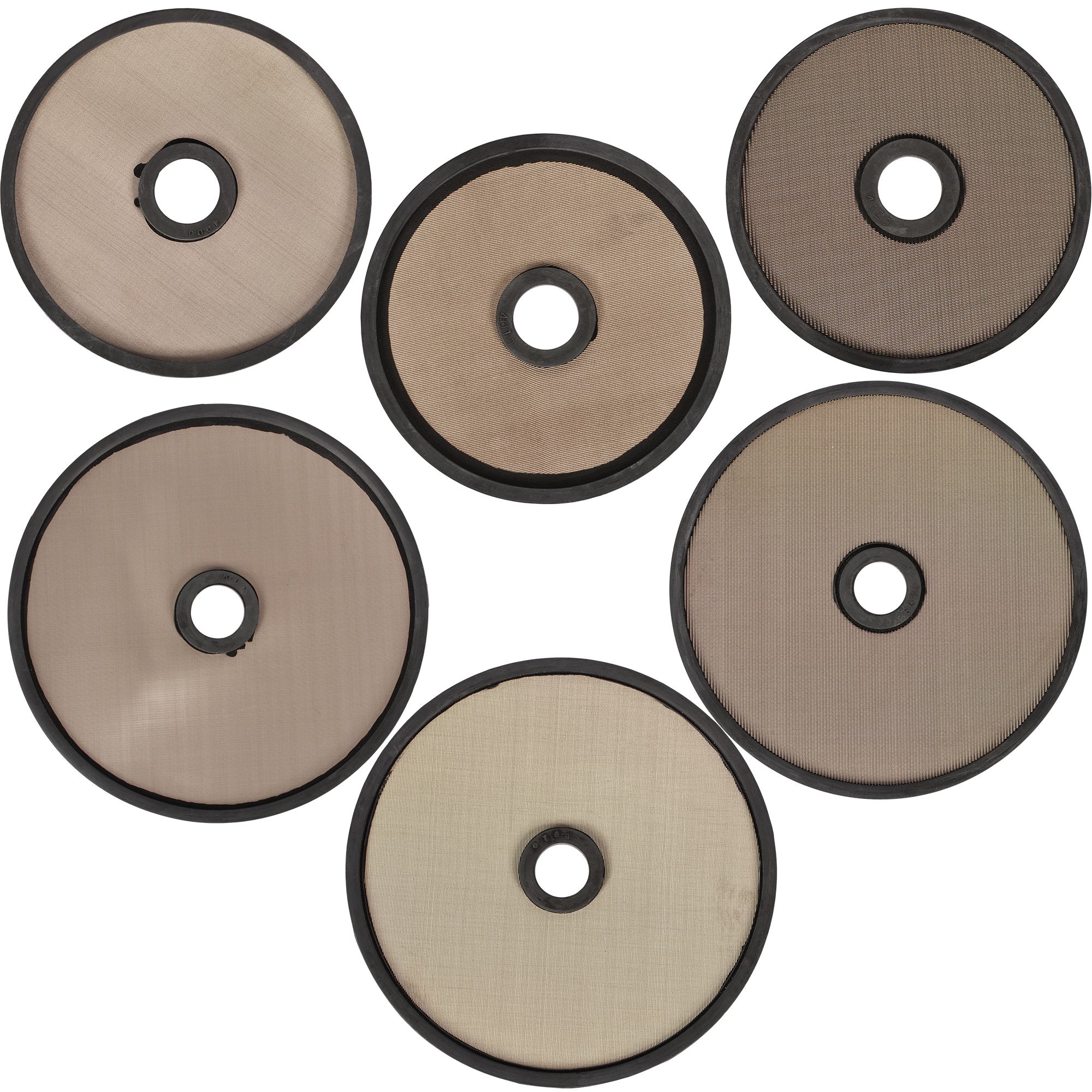

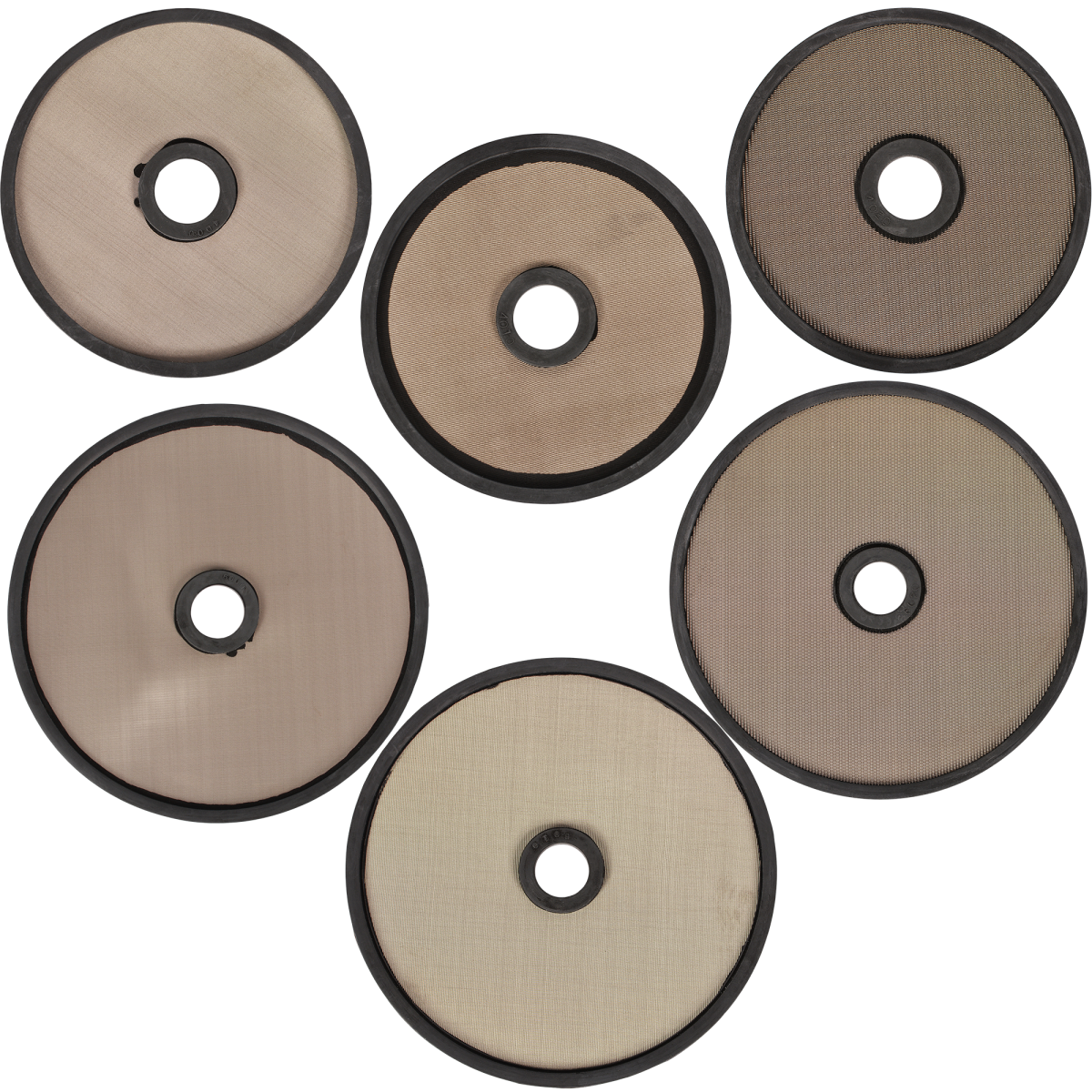

Oberg Filter Screens

Oberg Filters have been protecting racing engines for over 20 years. Instead of cast aluminum the filters are CNC milled from 6061 T-6 aircraft grade aluminum. This allows for greater strength while keeping the weight down. With 28, 60 and 115 absolute micron screens, Oberg Filters can find the perfect combination to protect your racing vehicle from fuel system to differential.

4″ – 28 micron

• Flow rate for 93 octane unleaded fuel: 8 gallons/min
• Flow rate for 20W-50W oil: 5 gallons/min

4″ – 60 micron

• Flow rate for 93 octane unleaded fuel: 14 gallons/min
• Flow rate for 20W-50W oil: 10 gallons/min

4″ – 115 micron

• Flow rate for 93 octane unleaded fuel: 22 gallons/min
• Flow rate for 20W-50W oil: 16 gallons/min

6″ – 28 micron

• Flow rate for 93 octane unleaded fuel: 18 gallons/min
• Flow rate for 20W-50W oil: 11 gallons/min
• Outside diameter: 5-¹³/₁₆“
• Inside diameter: ¾”
• Thickness: 3/16″

6″ – 60 micron

• Flow rate for 93 octane unleaded fuel: 35 gallons/min
• Flow rate for 20W-50W oil: 20 gallons/min
• Outside diameter: 5-13/16″
• Inside diameter: ¾”
• Thickness: 3/16″

6″ – 115 micron

• Flow rate for 93 octane unleaded fuel: 50 gallons/min
• Flow rate for 20W-50W oil: 31 gallons/min
• Outside diameter: 5-13/16″
• Inside diameter: ¾”
• Thickness: 3/16″
