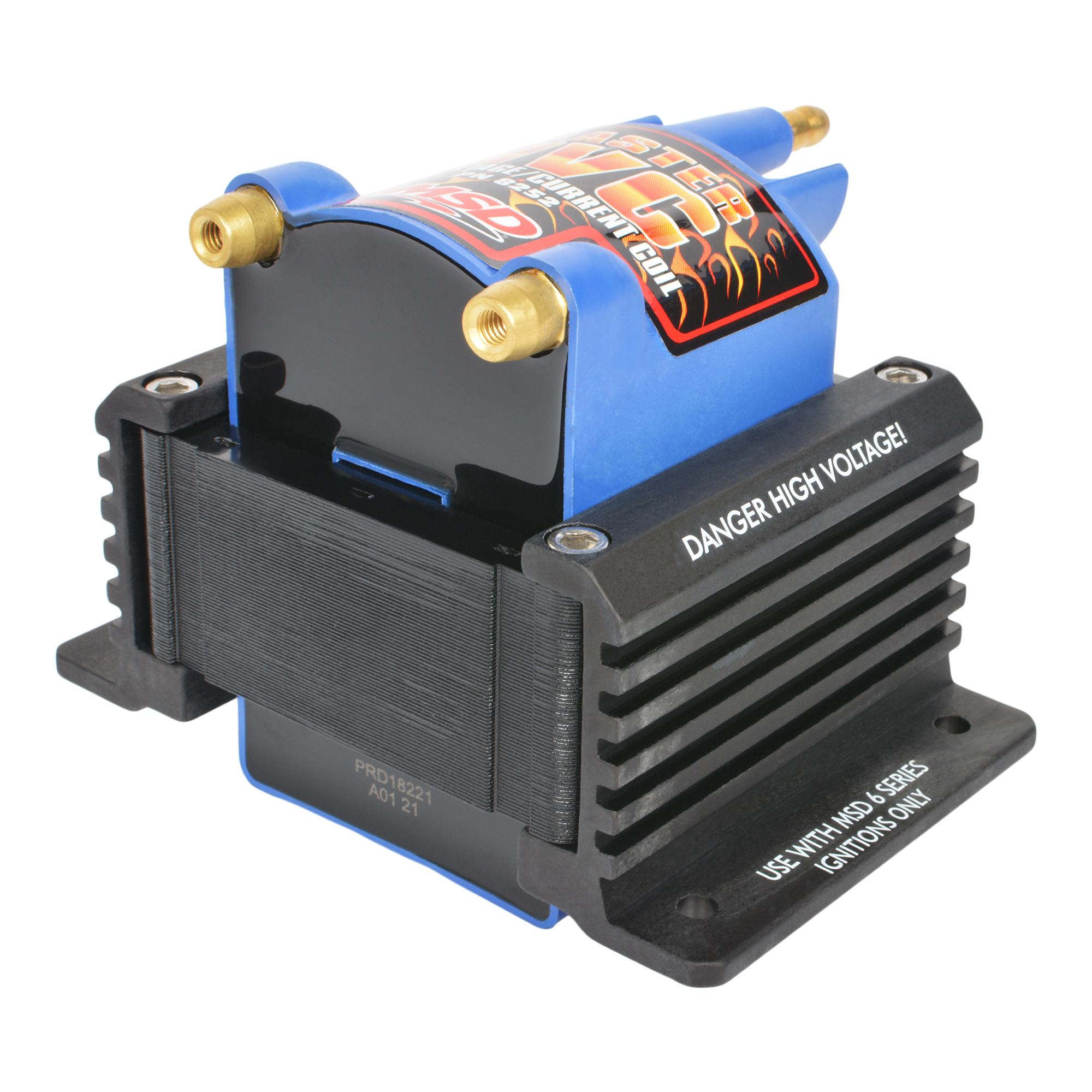

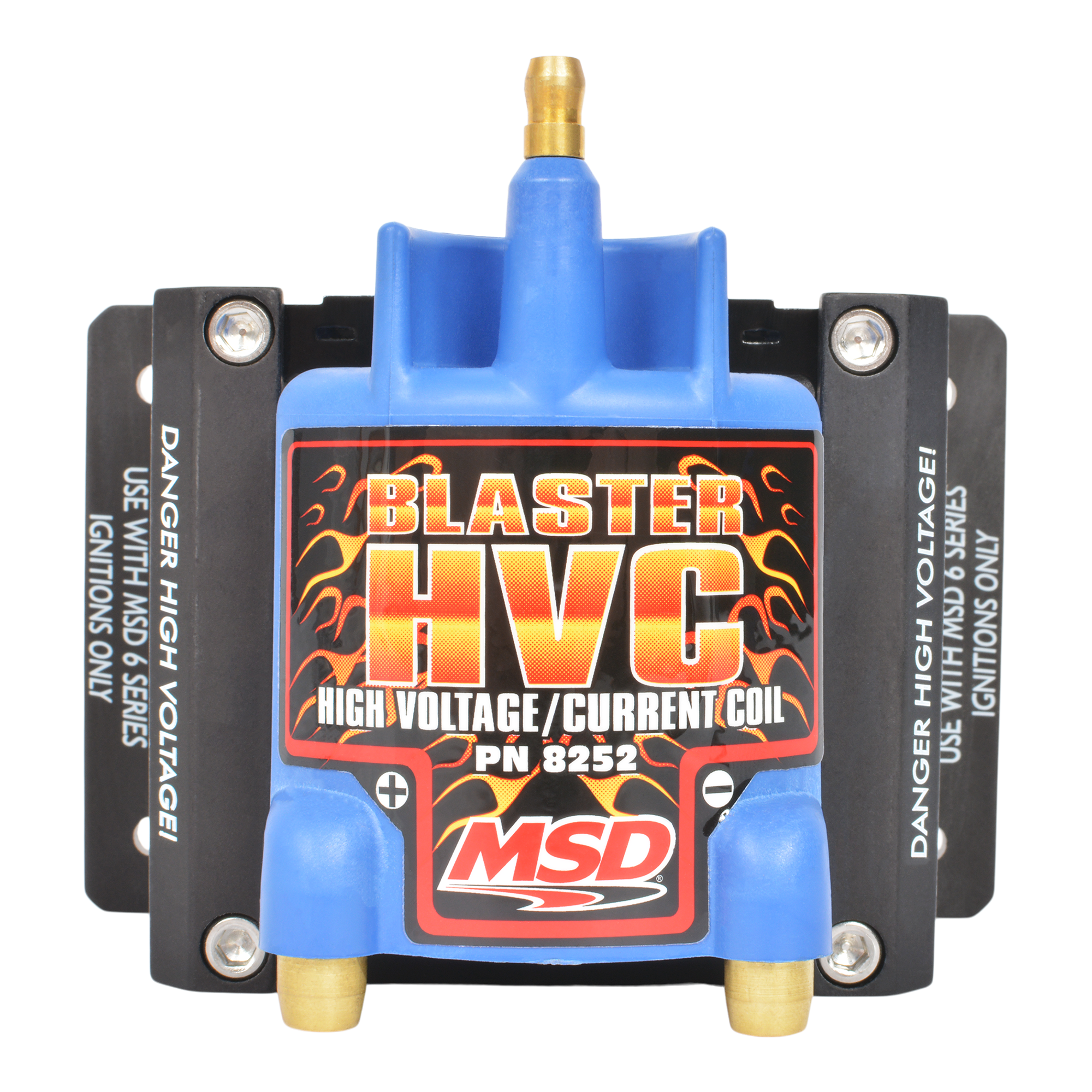

MSD Blaster HVC ignition coils are designed for high-rpm, long-duration applications, such as road course and Circle Track racing using the MSD 6 Series ignition. These units feature a 100:1 turns ratio, as well as lower primary resistance to produce high-voltage output. Windings are encased in a durable epoxy and secured with extruded brackets. They also feature a spark plug style terminal and a threaded brass primary stud. These ignition coils are CARB EO-approved and are supplied with rubber shock mounts to help them resist coil vibration. Equip your performance vehicle with MSD Blaster HVC ignition coils and feel the power!
| Brand | MSD |
|---|---|
| Emission Code | 1 |
| Inductance | 7 mH |
| Maximum Voltage | 42,000 Volts |
| Peak Current | 300 mA |
| Primary Resistance | .02 OHMs |
| Product Type | Ignition Coil |
| Secondary Resistance | 1.38K OHMs |
| Spark duration | 200 uS |
| Part Number | 8252 |
