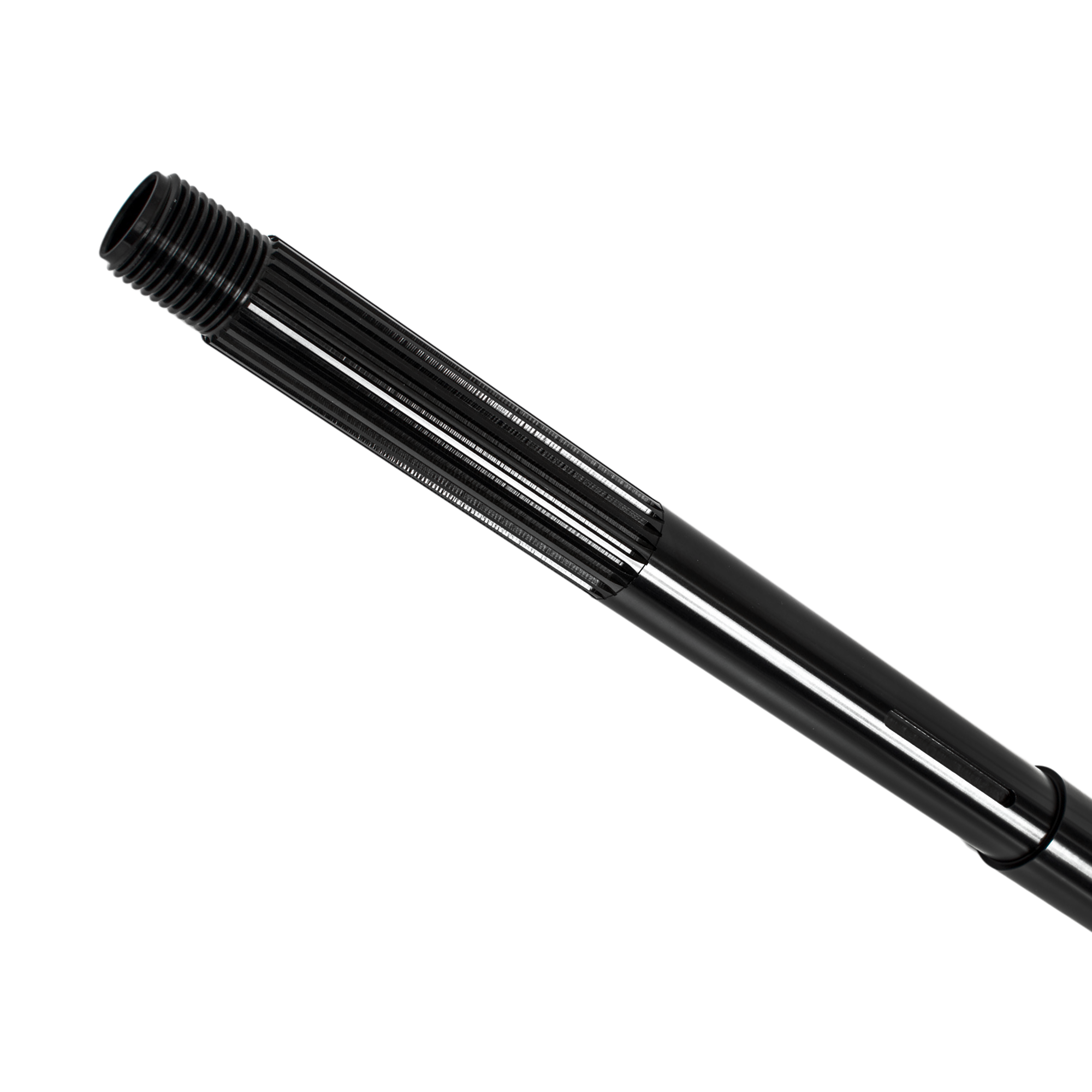

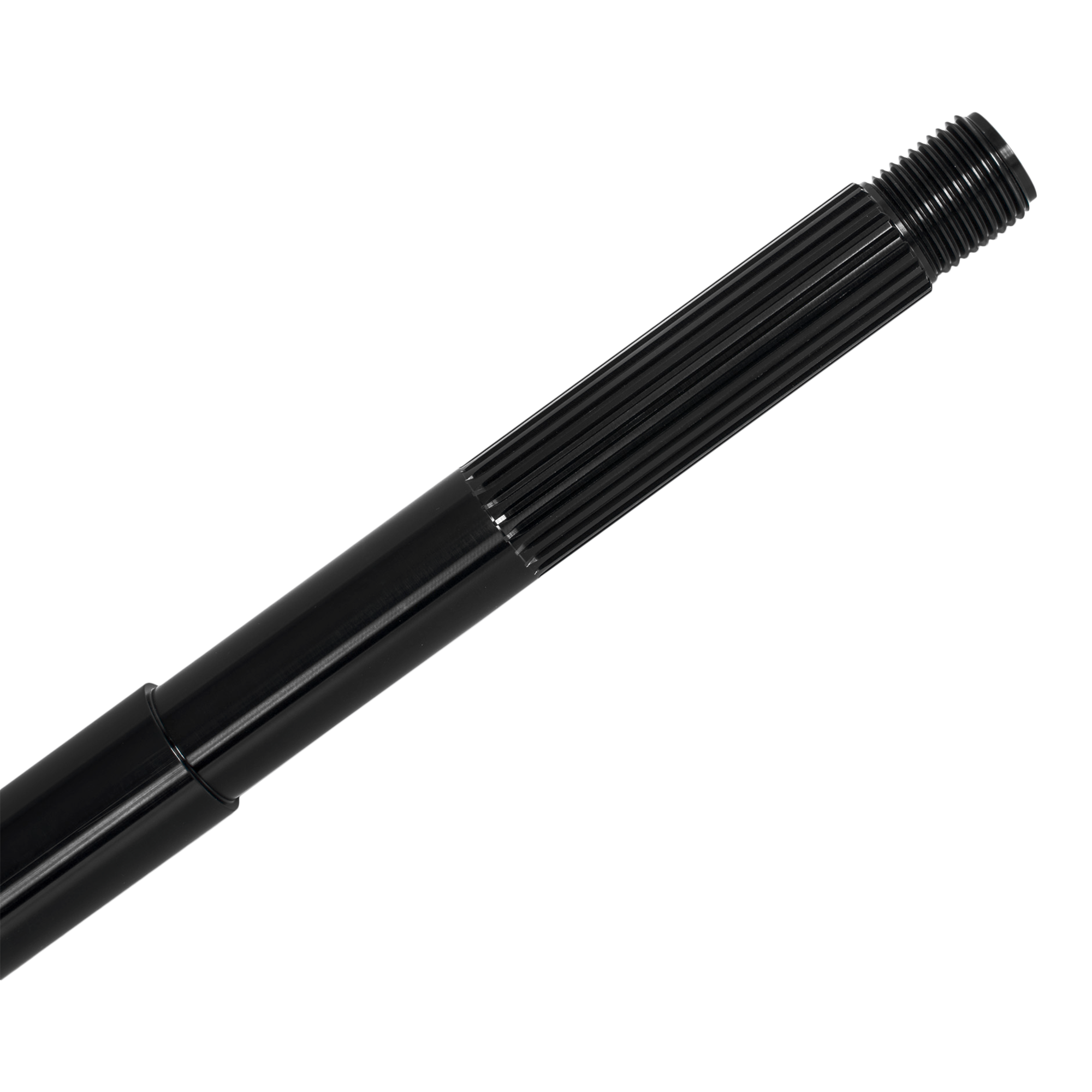

JOES JR Sprint Splined Axle is stronger, lighter, and more adjustable compared to our previous steel axle. It is 1½” diameter with 23 splines on both ends and a keyed rotor carrier. We managed to take off over 2 pounds of rotating and unsprung weight while increasing the strength at the same time by using 7075-T6 material. The splines and threaded ends let you move your wheels in and out just like they do on bigger cars. All the components needed for a complete rear axle assembly.

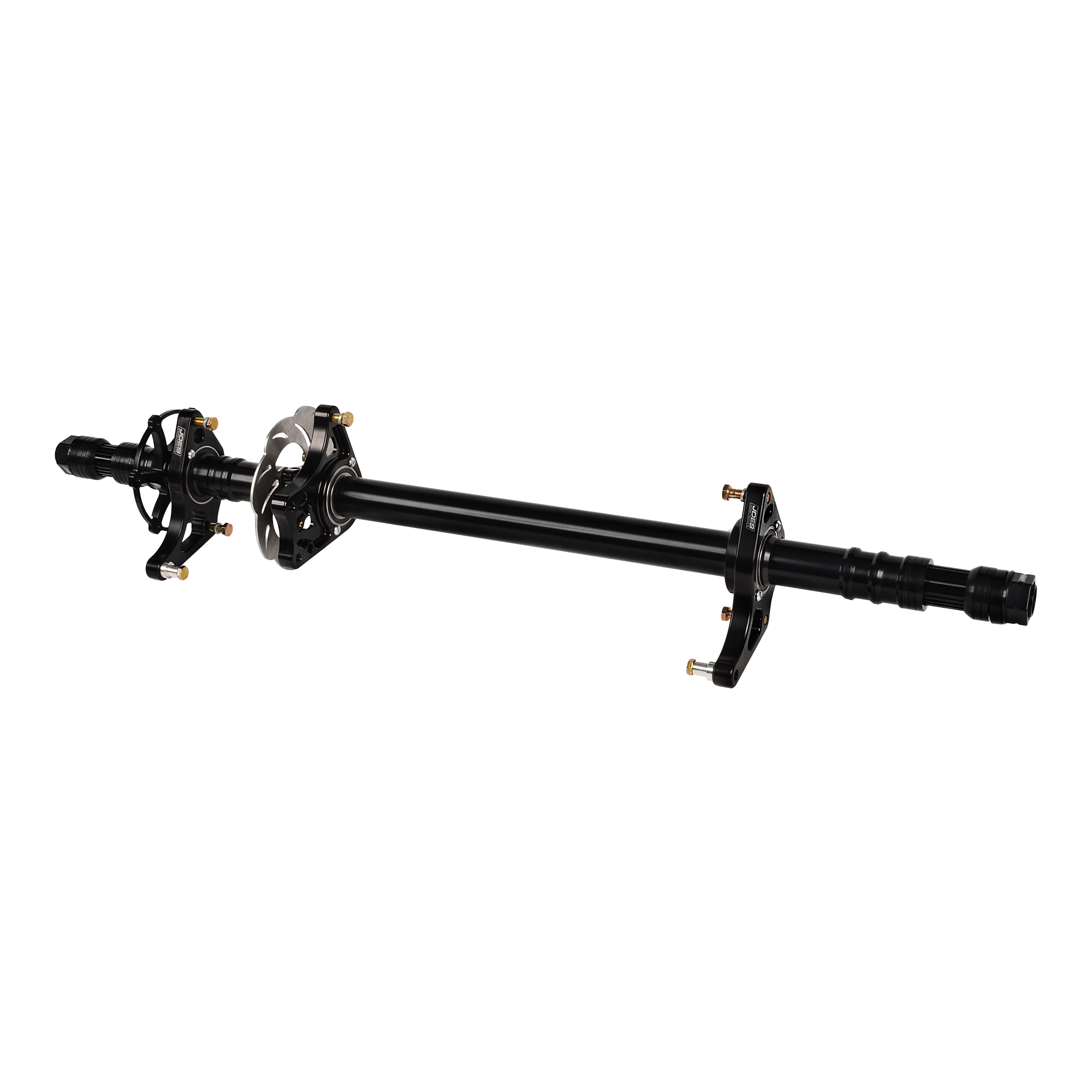

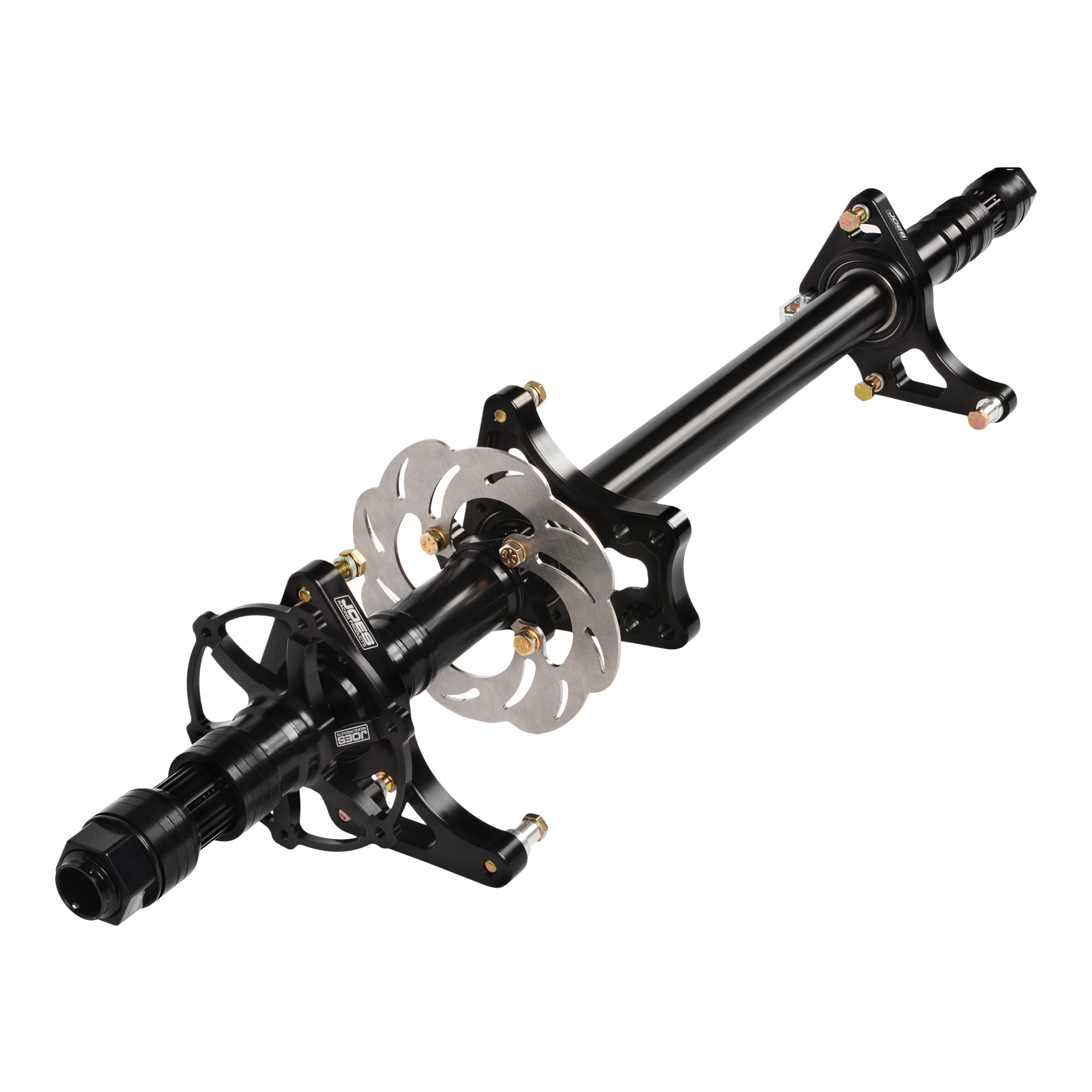

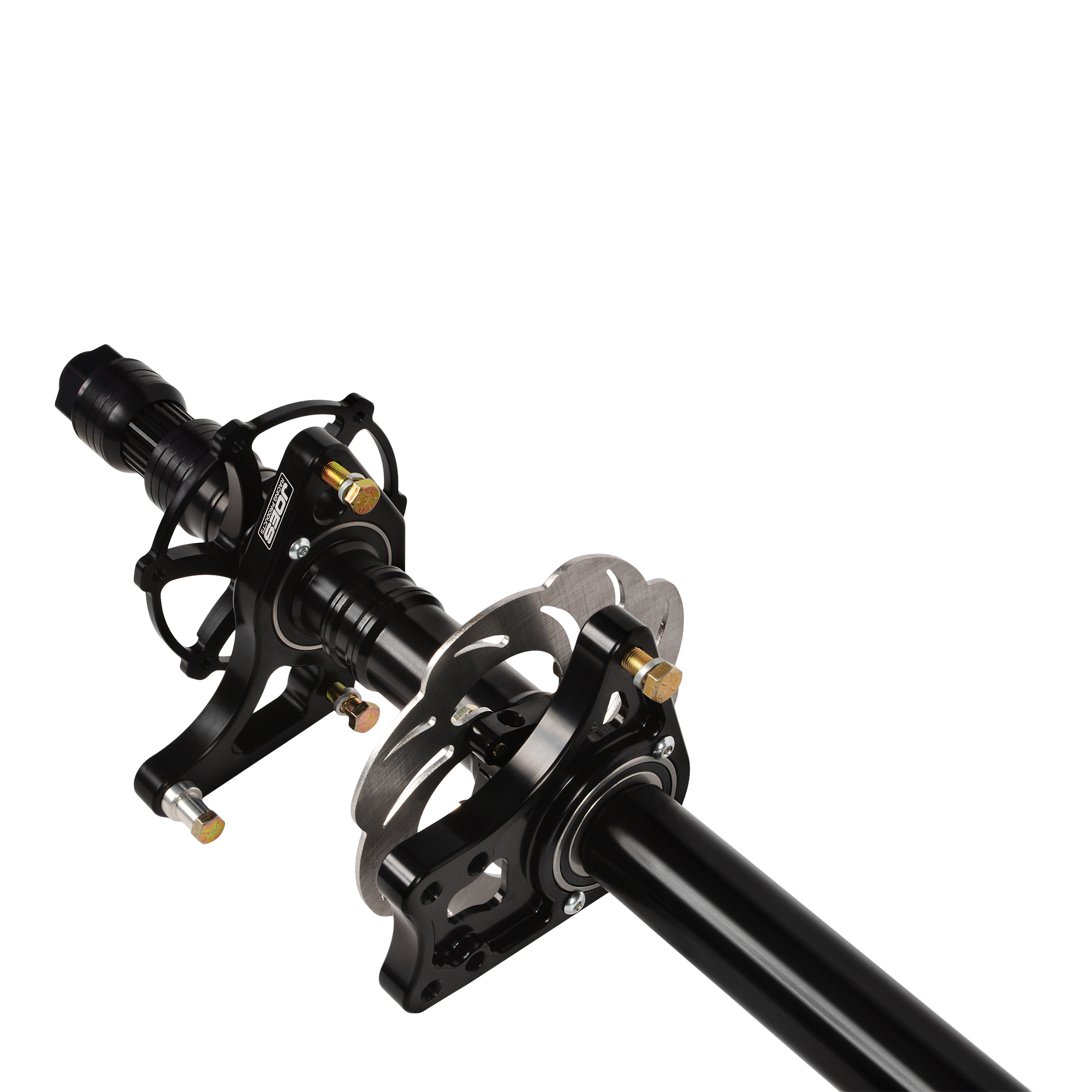

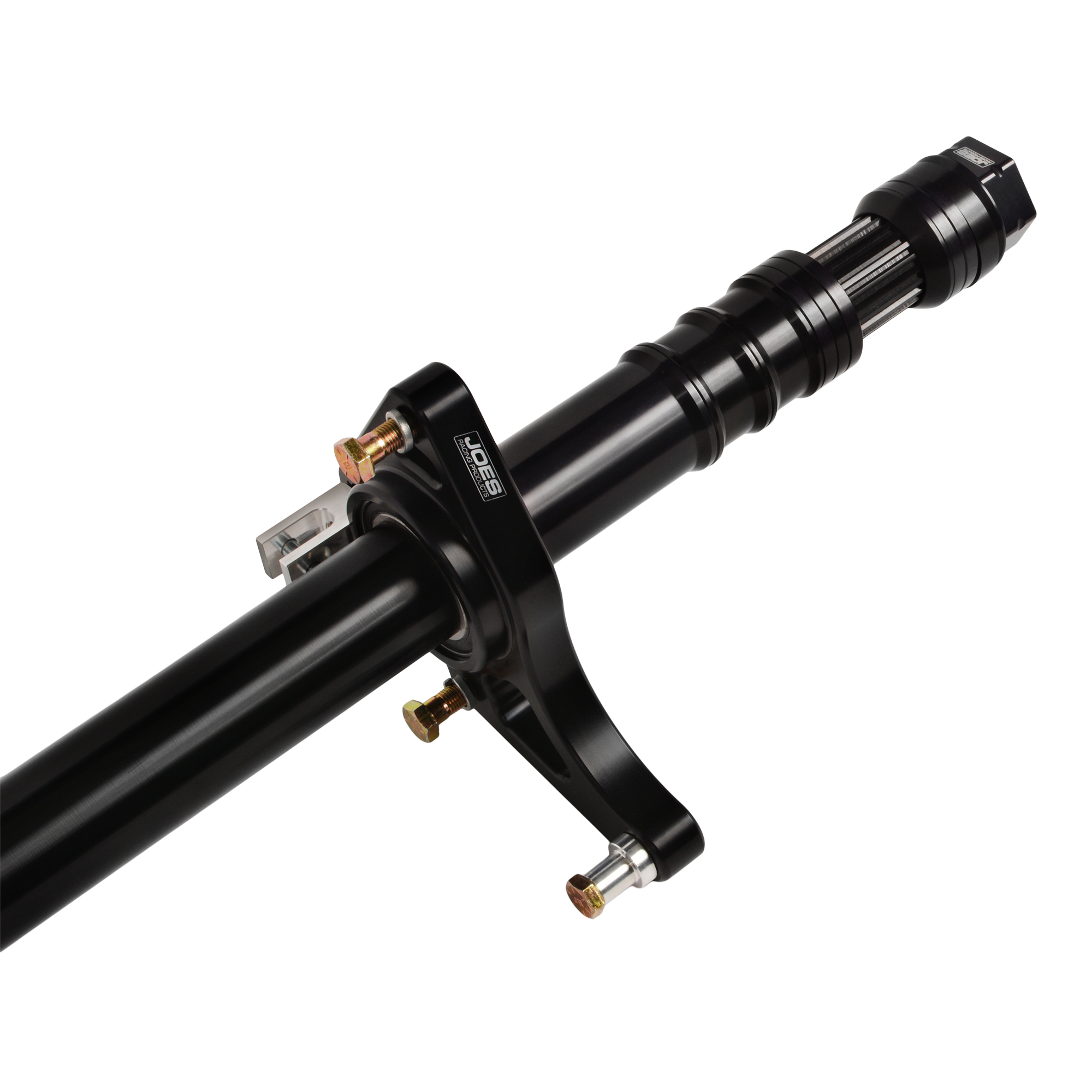

Assembly includes:
- (1) Jr Sprint 23 Tooth Splined Rear Axle, 1½” Diameter 24656
- (1) Jr Sprint Splined Sprocket Carrier 24675
- (1) Jr Sprint Rotor Carrier, 1½” 24685
- (2) Jr Sprint Rear Axle Nuts 24696 & 24697
- (1) Jr Sprint Rear Caliper Carrier, 1½” 24787
- (3) Jr Sprint ¼” Axle Spacers, 1½” 24852
- (2) Jr Sprint ½” Axle Spacers, 1½” 24853
- (1) Jr Sprint ⅝” Axle Spacer, 1½” 24854
- (1) Jr Sprint ¾” Axle Spacer, 1½” 24855
- (5) Jr Sprint 1″ Axle Spacers, 1½” 24856
- (2) Jr Sprint 3¼” Axle Spacers, 1½” 24857
- (2) Jr Sprint ½” Coned Axle Spacers, 1½” 24860
- (2) Jr Sprint 1″ Coned Axle Spacers, 1½” 24862
- (1) Jr Sprint LR Birdcage, 1½” 24873
- (1) Jr Sprint RR Birdcage, 1½” 24875
- (1) Jr Sprint / Kart Rear Rotor 25760
