JOES UTV STEERING WHEEL QUICK RELEASE
Our bolt-on UTV Quick Releases are lightweight and SFI certified for all racing applications. These allow you to easily replace your factory steering wheel with a wide range of aftermarket steering wheels, making it easier to get in and out of your machine while adding a layer of theft protection.

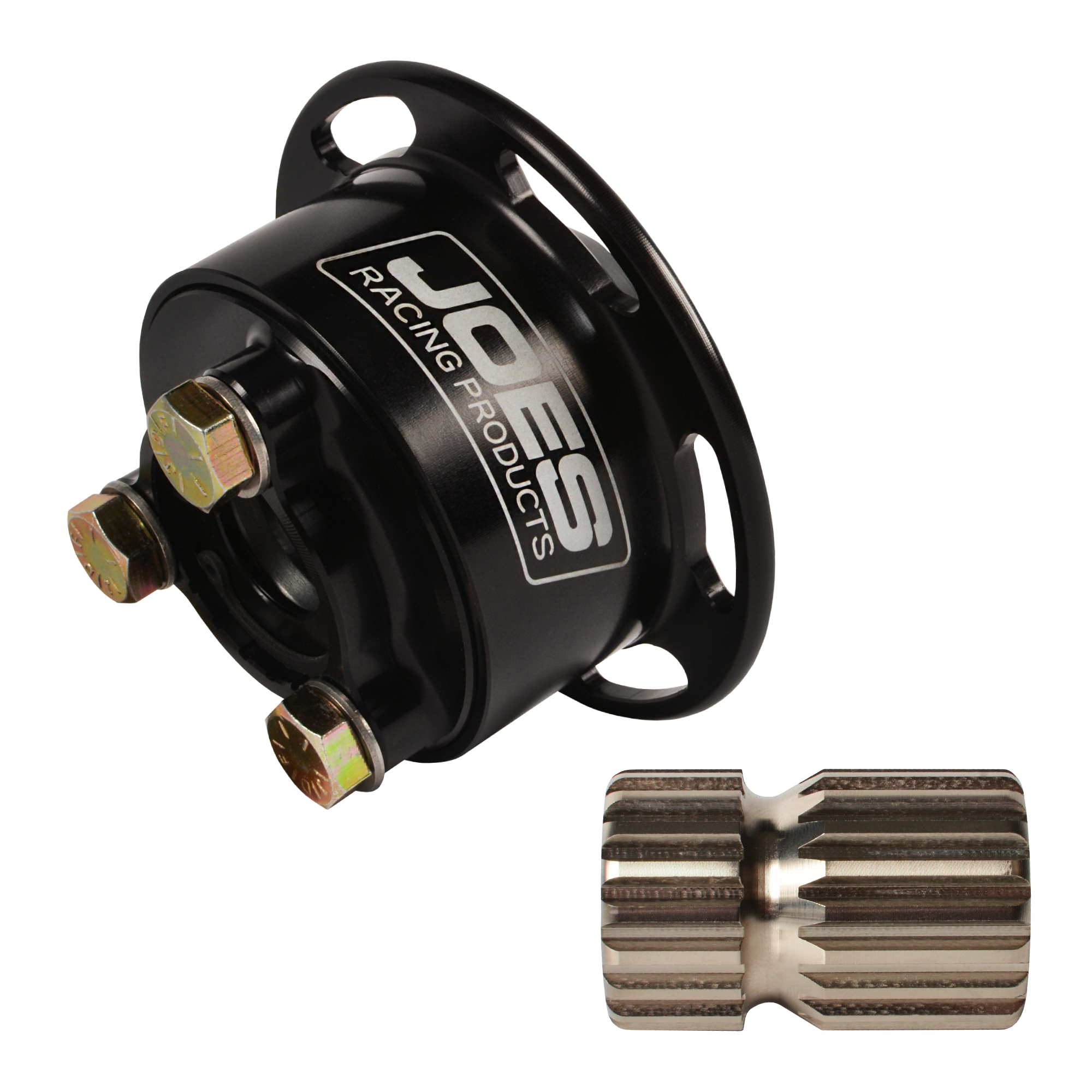

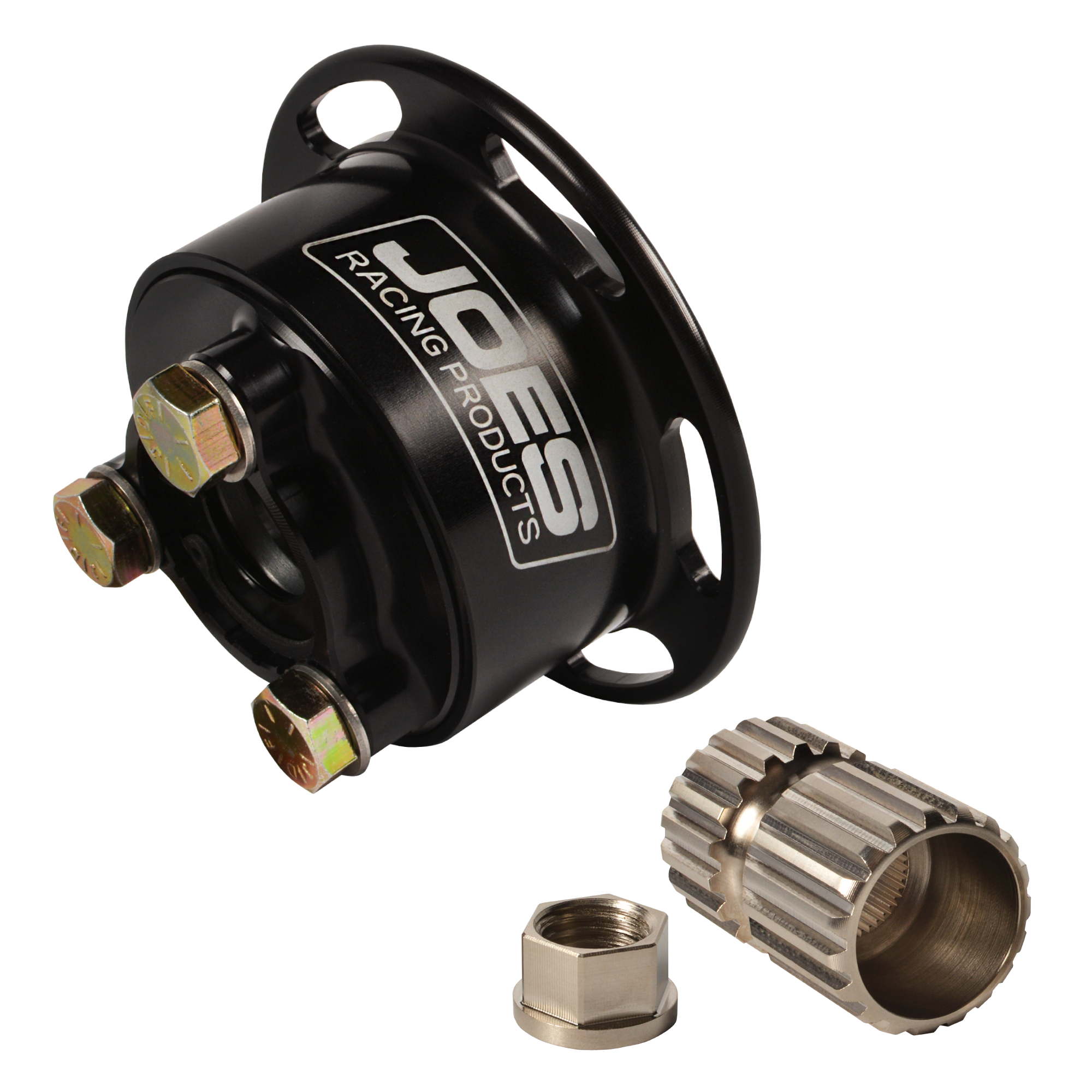

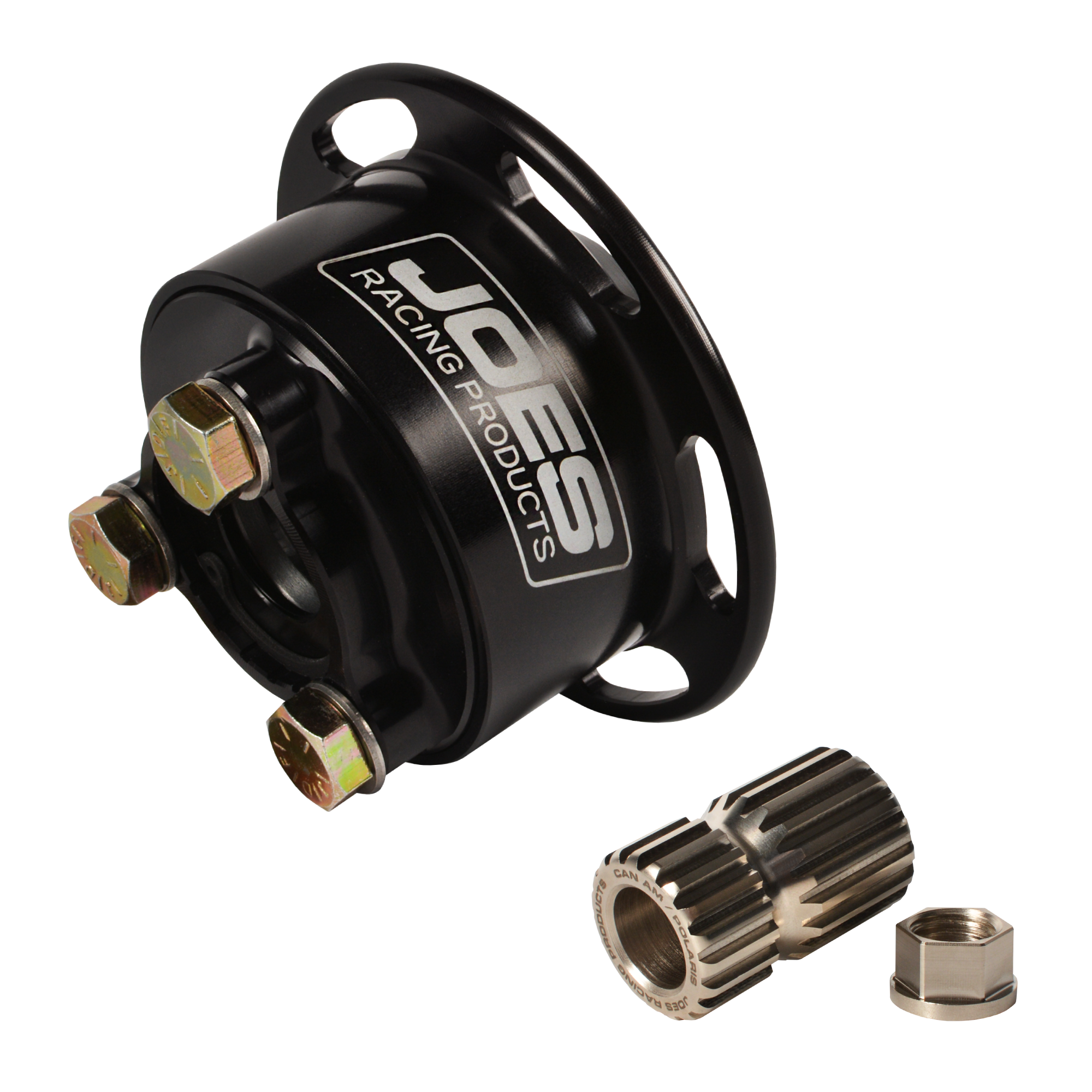

We’ve designed and manufactured a splined coupler that features a custom internal nut which allows us to get full spline engagement between it and the quick release housing. These also utilize the stock shaft taper to press and bolt directly to your factory steering column shaft once you remove your original steering wheel. (Note: A steering wheel puller may necessary to remove your OEM wheel)
The aluminum quick release housing pushes over the steel coupler and locks in place without the need to pull the large diameter disconnect ring. We have three steering wheel bolt patterns available (6 Bolt, 5 Bolt and 3 Bolt). All are precision machined and designed for longevity, ease of use and safety.
- Fits Polaris, Can-Am, Arctic Cat/Textron UTV models
- Bolt Patterns:
- Universal 6 Bolt: 6x M5 x .8 on a 70mm(2.750”) or 74mm DIA bolt circle.
- Universal 5 Bolt: 5x 10-32 on a 72mm(2.835”) DIA bolt circle.
- Universal 3 Bolt: 3x 5/16-18 on a 1.750” DIA bolt circle.
- Super Lightweight: Complete assembly weighs in at exactly one pound.
- Tightly Machined Tolerances: All components in our Pro Quick Releases are held to exceptionally high tolerances, virtually eliminating slop between the coupler and hub.
- Plating: Coupler and Nut are electroless nickel plated to prevent rust after years of use.
- Made in the USA
Note: A 18mm socket that measures 24mm(15/16”) in DIA will be needed to install the custom nut. (Craftsman 18mm deep socket Part Number CMMT44435) Available on Amazon Here
