WHAT’S NEW WITH THE VERSION 3 STEERING RACK?
- NEW case seal design for reduced maintenance and internal component protection
- Increased load capacity by designing a wider linear gear to distribute the load over a larger surface area creating less wear for longer life
- Still the lightest steering rack on the market while maintaining the external case dimensions making it an easy bolt-in upgrade
Our brand new case seal design closes off 95% of the bottom rack, drastically reducing the amount of dirt and other particles that get inside the rack itself. With our new seals, your rack will last longer, require less grease and decrease required maintenance. In the end, this rack is smooth, strong, lightweight, serviceable and easy to maintain.
Designed, developed and machined completely in house, our Micro Sprint Steering Rack is smooth, strong, lightweight and serviceable. It will provide consistent driver feedback with years of trouble free service in racing conditions.

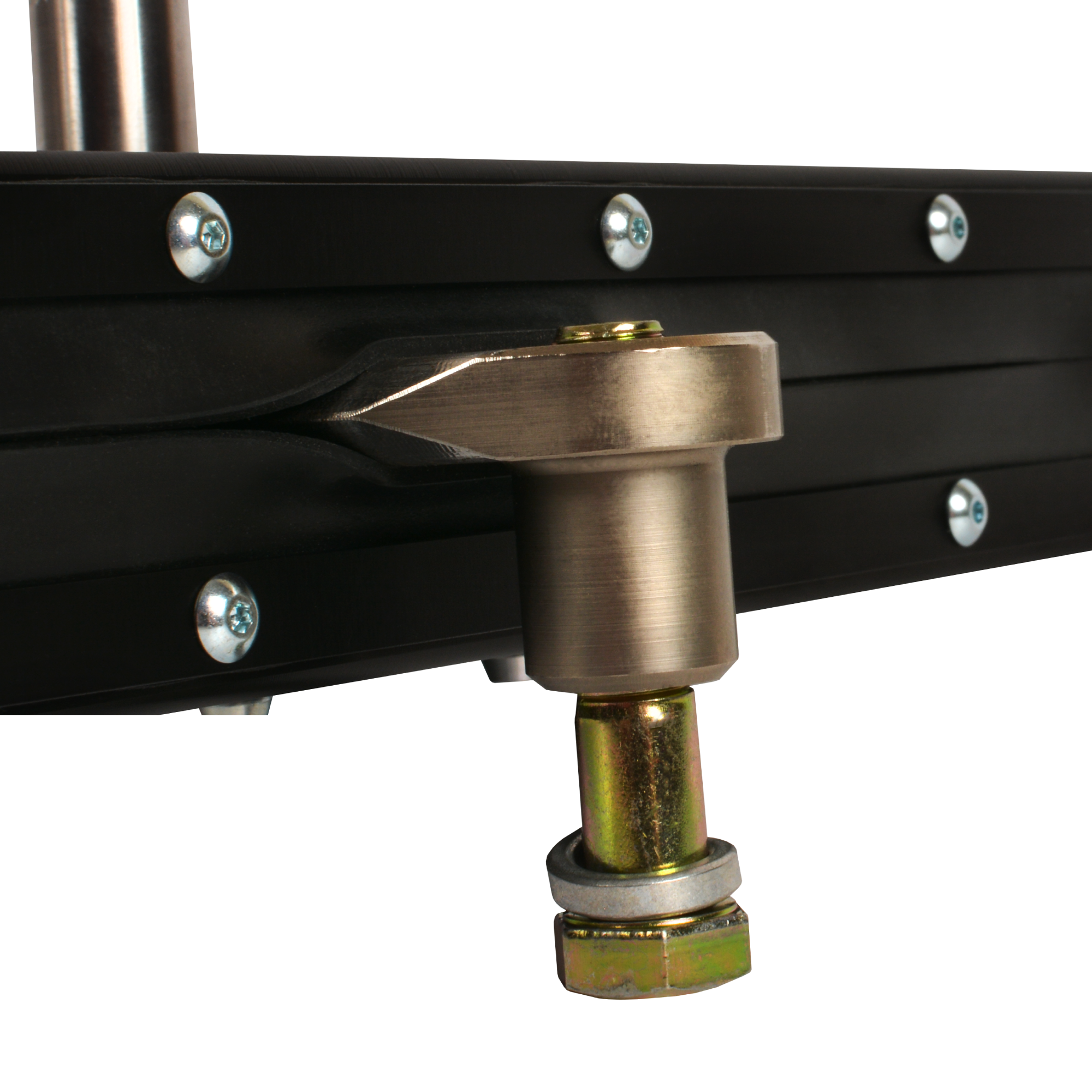

Our rack starts out with a 6061-T6 Aluminum body, a lightweight aluminum rack, hardened and plated steel heim bracket, and full ball bearing control. The heim bracket also features the only replaceable design on the market. We are confident that our heat-treated bracket will not bend, but if it does, you can always get a replacement tab directly from us and replace it yourself instead of buying a whole new Steering Rack. Two grease zerks on the outside of the rack make routine maintenance quick and easy and the rack can be completely disassembled for a complete deep clean in minutes.
V3 SPECS:
- RATIO: 12:1
- TRAVEL: 6½”
- WEIGHT: 2.9lbs
- INPUT SHAFT SPLINE: ⅝”-36 (USE SWE401-50607 U Joint)
- INPUT SHAFT MATERIAL: 4130 solid Chromoly
- RACK MATERIAL: Lightweight Aluminum
- HEIM BRACKET: Hardened, Plated and Replaceable
- DRAG LINK SPUD: Threaded and built in to Heim Bracket
- SERVICEABLE: Two grease zerks for rack gears
- 100% designed, machined and assembled in USA at JOES Racing
