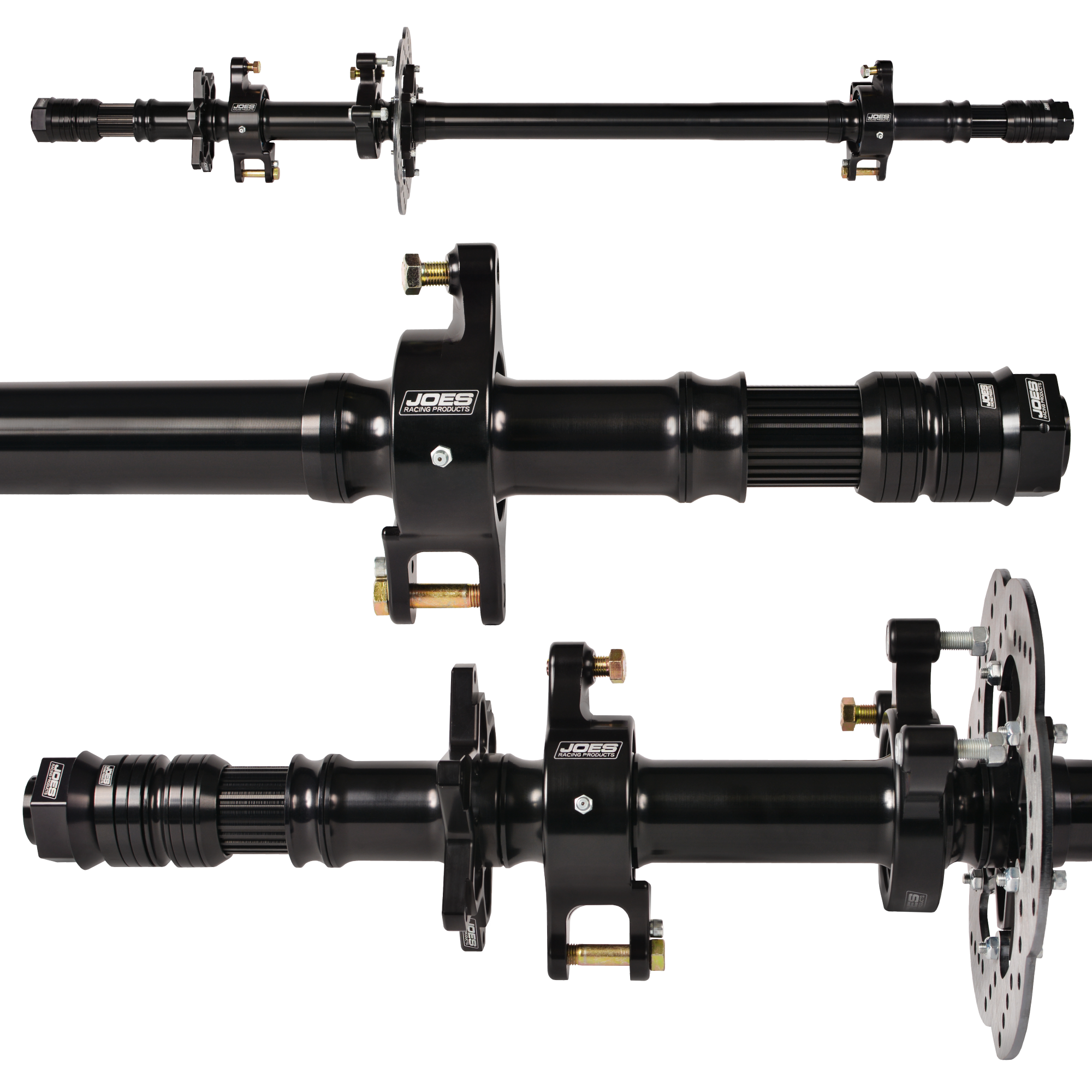

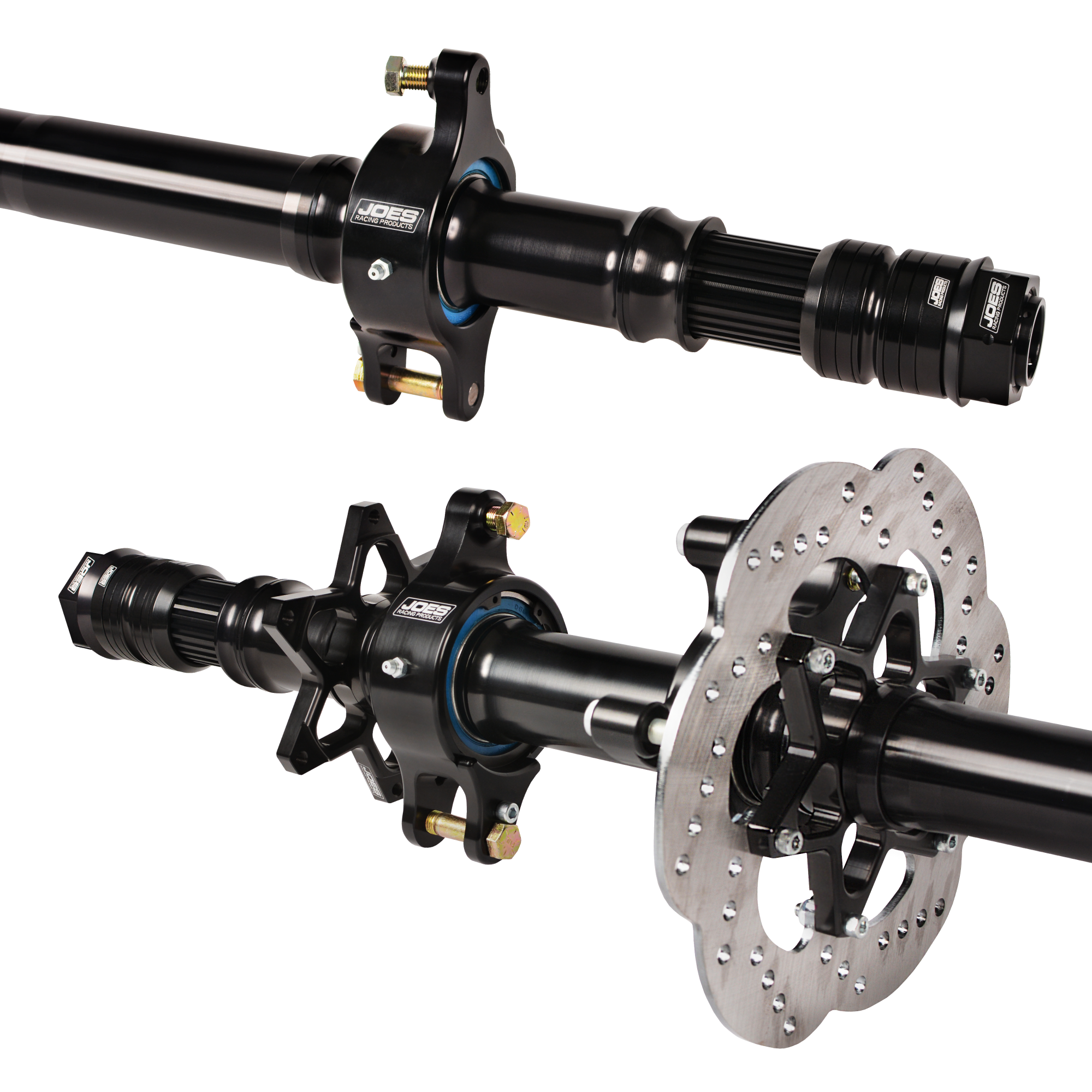

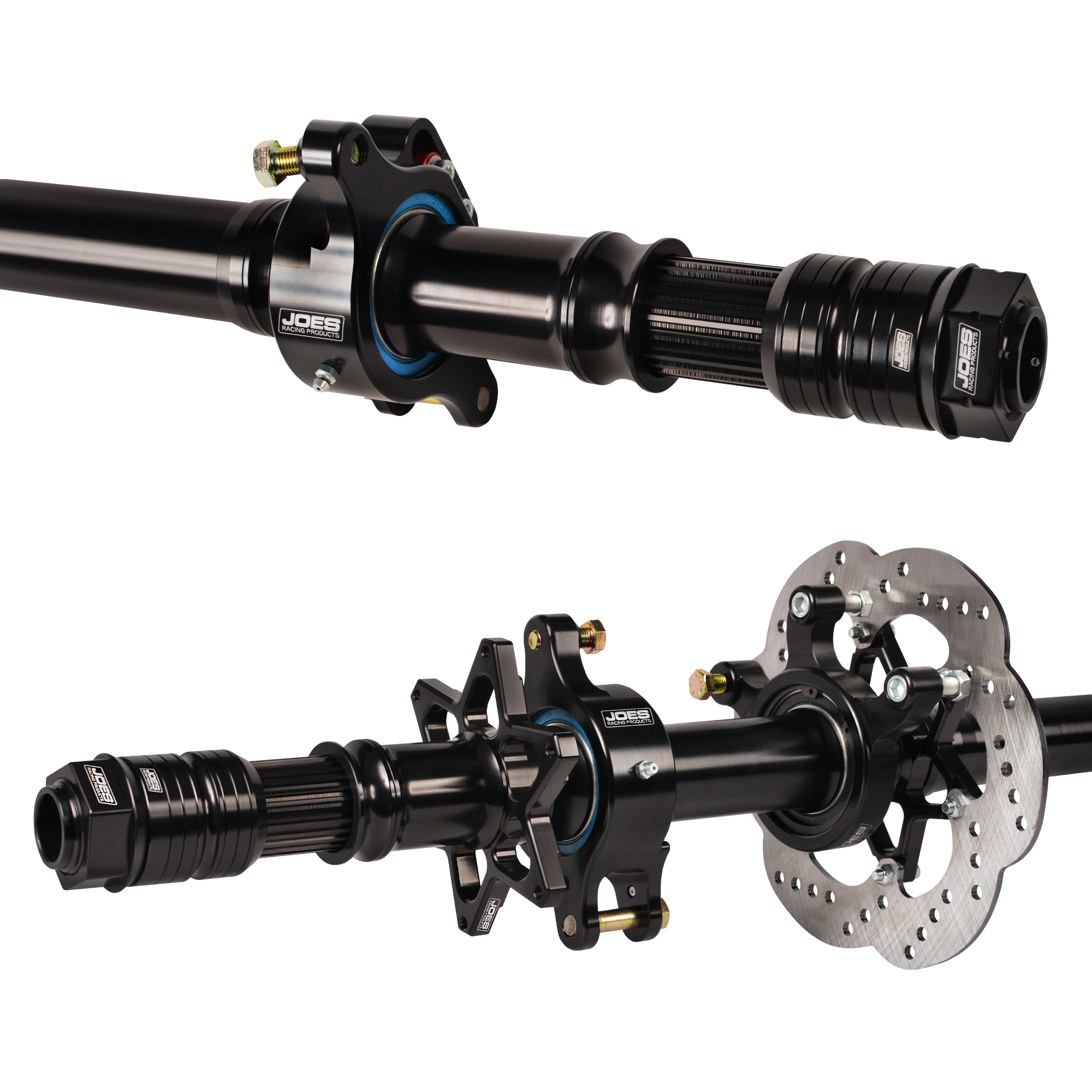

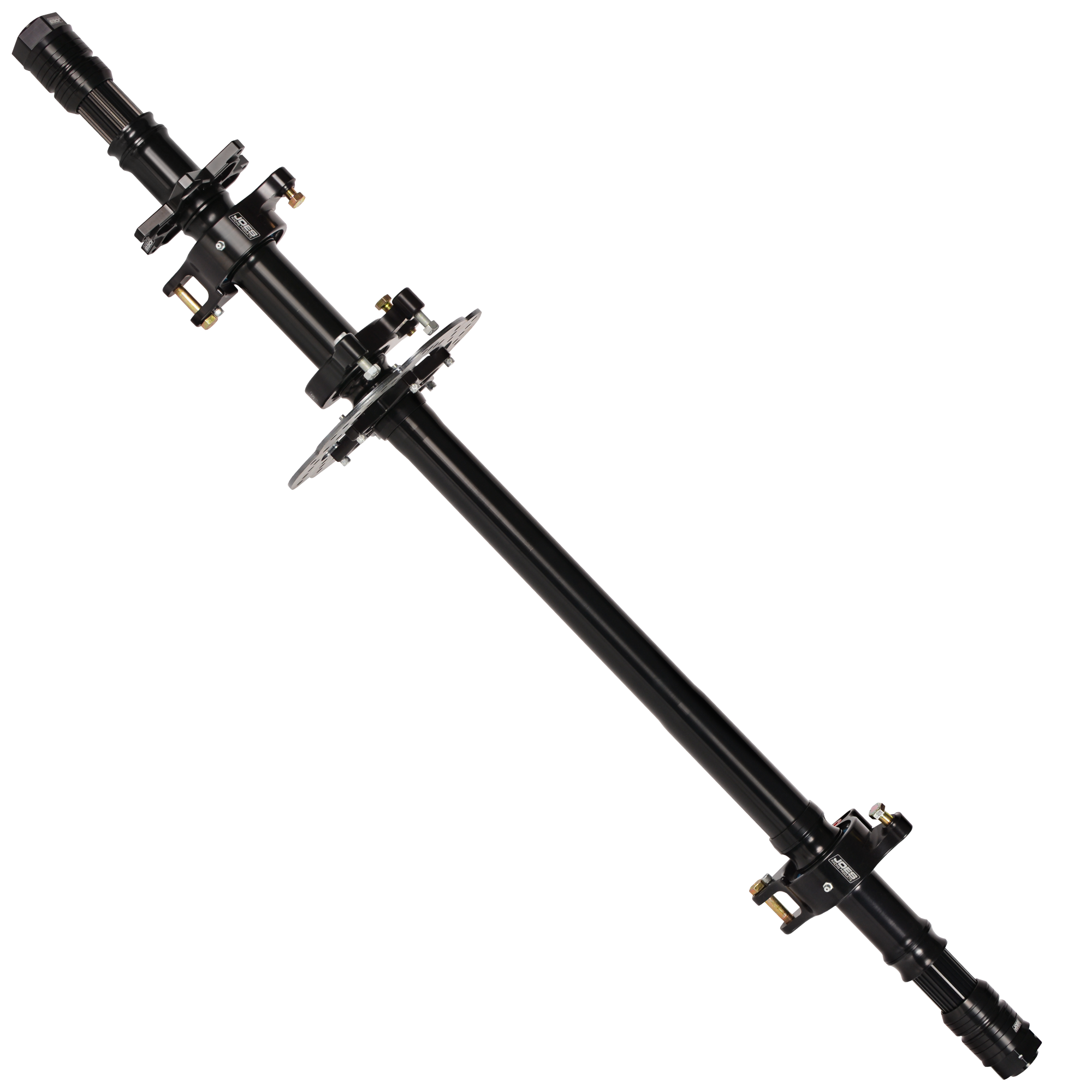

JOES 1¾” Rear Axle Kit includes all of our high end components that have been winning races for years. Everything is included, even instructions and diagrams to help you get everything lined up where it needs to be. With all the variation in motor manufacturers some additional spacers may be required to get your chain lined up perfectly.
CLICK ON ASSEMBLY DRAWING HERE: 25829-V2
Each assembly includes the following:
- (1) Micro Sprint 1¾” Splined Rear Axle, Black (25654)
- (2) Micro Sprint Axle Radius Spacers (25656)
- (2) Micro Sprint Brake Rotor Carrier(25685)
- (1) Micro Sprint LH Thread Rear Axle Nut (25696)
- (1) Micro Sprint RH Thread Rear Axle Nut (25697)
- (1) Micro Sprint Rear Brake Caliper Carrier (Single Bearing) (25786)
- (2) 1¾” Micro Sprint Splined Insert (Double Bearing) (25785)
- (1) 1¾” Micro Sprint Splined Insert (Single Bearing) (25787)
- (1) Micro Sprint Rear Brake Rotor, 9½” Diameter (25796)
- (1) Micro Sprint Axle Spacer, ¾” (25803)
- (3) Micro Sprint Axle Spacer, 1″ (25804)
- (1) Micro Sprint Axle Spacer, 2⅜” (25810)
- (1) Micro Sprint Axle Spacer, 3¼” (25813)
- (1) Micro Sprint Axle Spacer, 5″ (25816)
- (2) Micro Sprint Split Coned Axle Spacer Kit, 1¾” Axle (25823)
- (1) Micro Sprint LR Birdcage for 1¾” Axle (Double Bearing) (25872)
- (1) Micro Sprint RR Adj. Birdcage for 1¾” Axle (Double Bearing) (25874)
- (1) ⅜-24 x ⅜” Eye, RH Heim Joint, Steel (24657)
- (1) ⅜-24 RH Jam Nut, Steel (24659)
