JOES Floor Mount Pedal Assembly

JOES Floor Mount Pedal Assembly

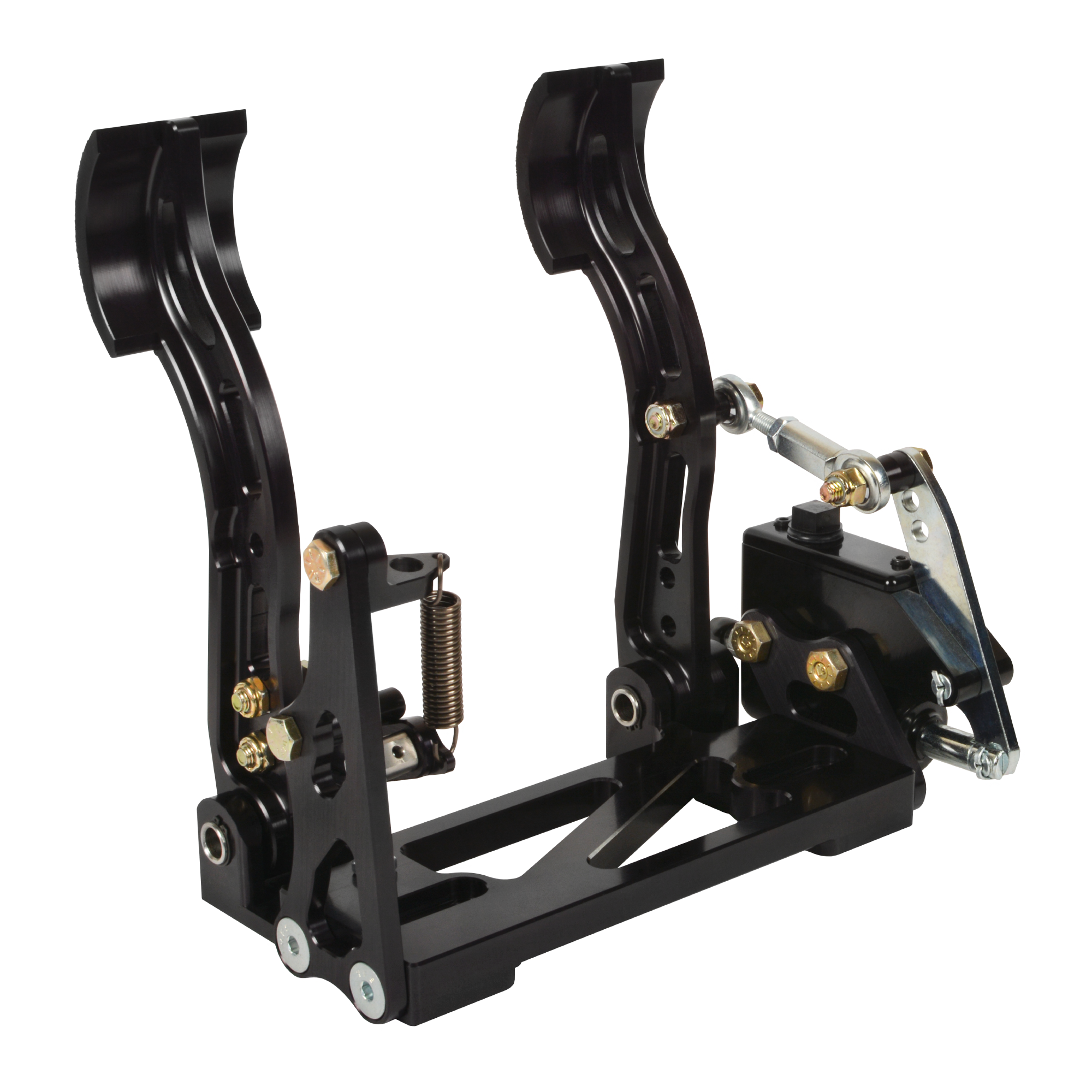

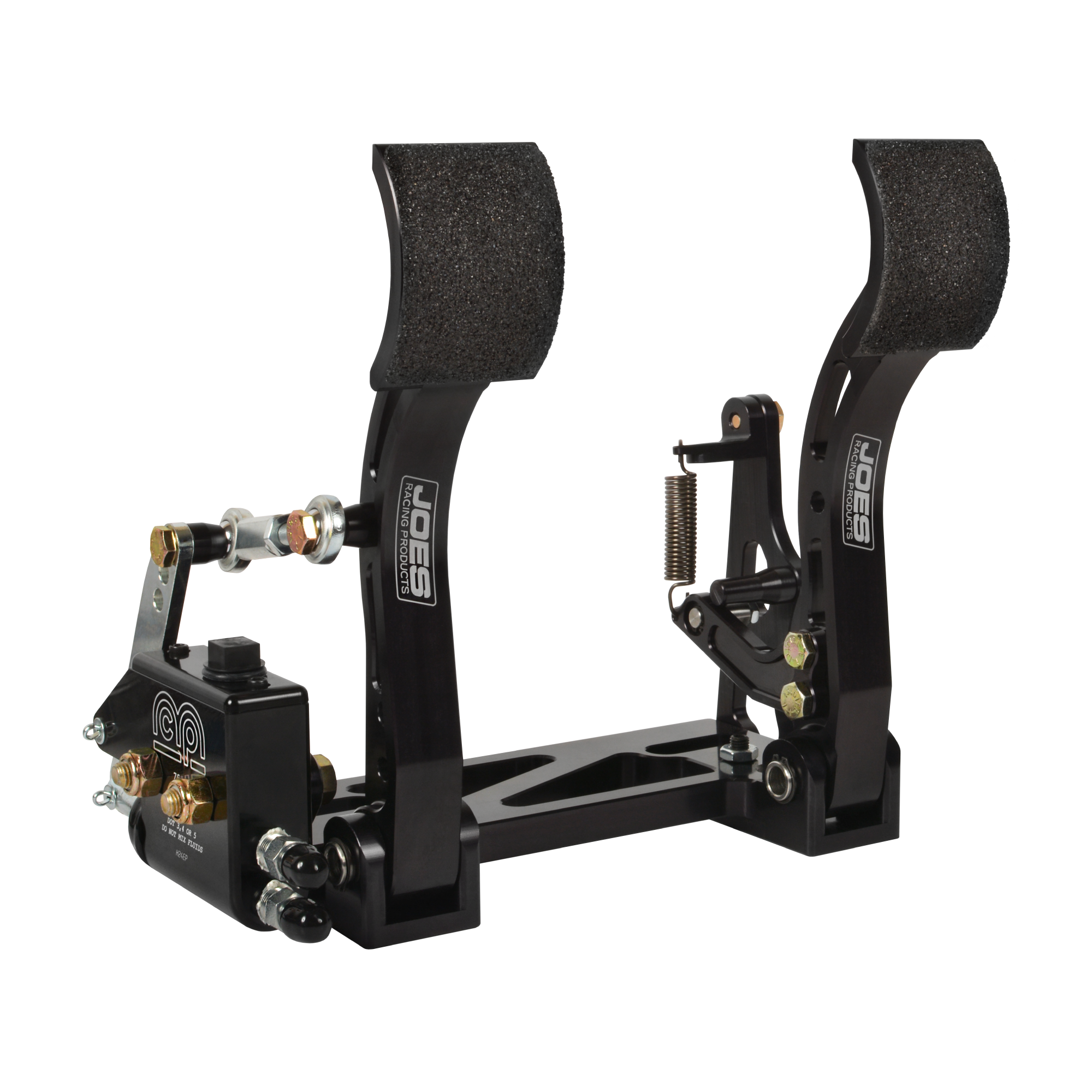

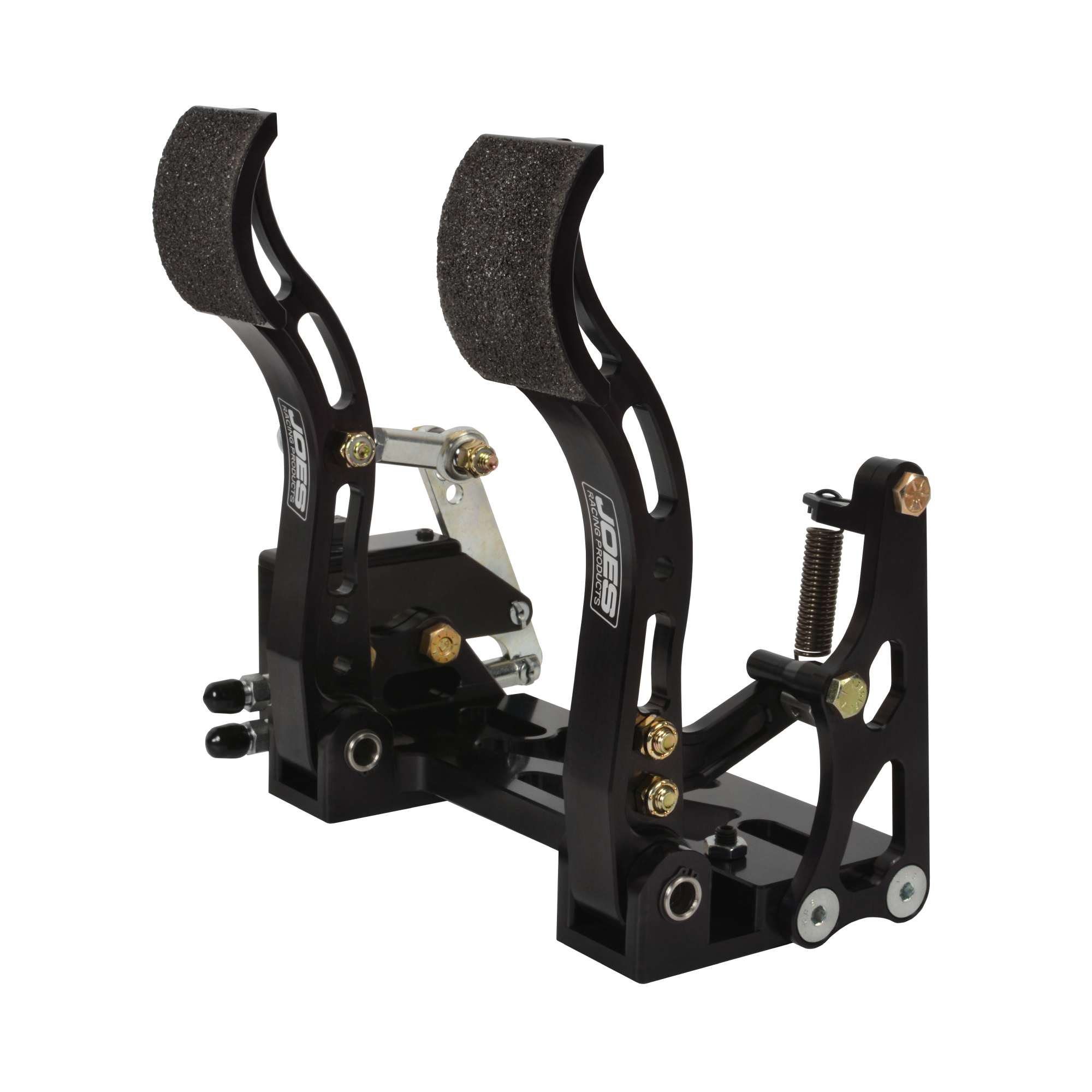

Need a high-quality, floor mount, small car pedal system for your racecar project? We designed this one for our JOES Chassis Micro Sprint but it can be used in many other classes and competitions.

Our JOES Floor Mount Pedal Assembly is designed and manufactured in-house to simplify the installation, location, and adjustment of your pedal system while maximizing durability in harsh racing environments.

The JOES Assembly is meant to be used with a frame mounted rail system in the chassis. It has an adjustable throttle stop and the built in throttle cable mount makes it easy to re-locate the pedal system as needed without needing to weld new cable chassis tabs to your chassis.

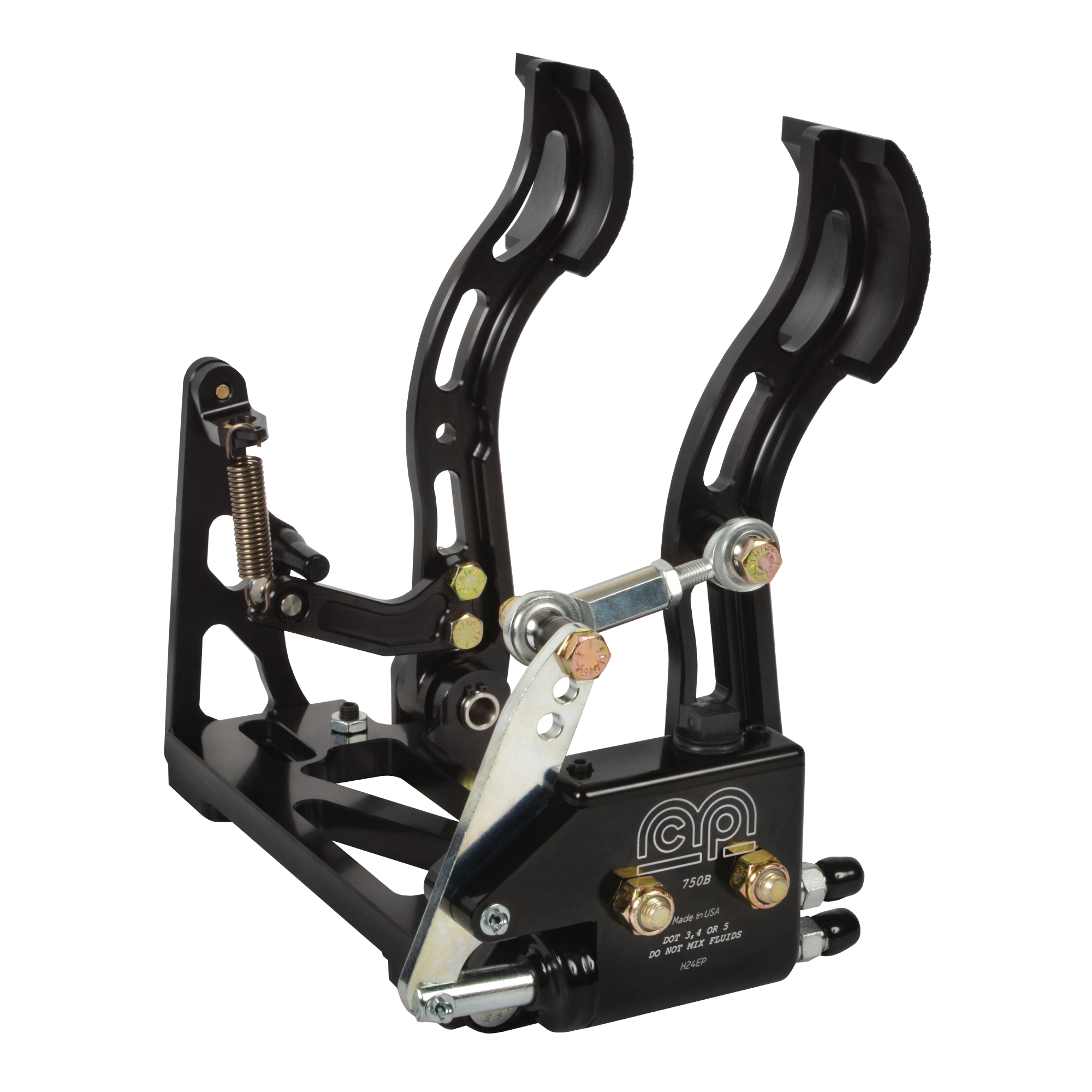

Our integrated master cylinder mount allows you to install an MCP750- Master Cylinder (Sold Separately) directly to pedal assembly to eliminate the need for master cylinder mounting tabs on your chassis.

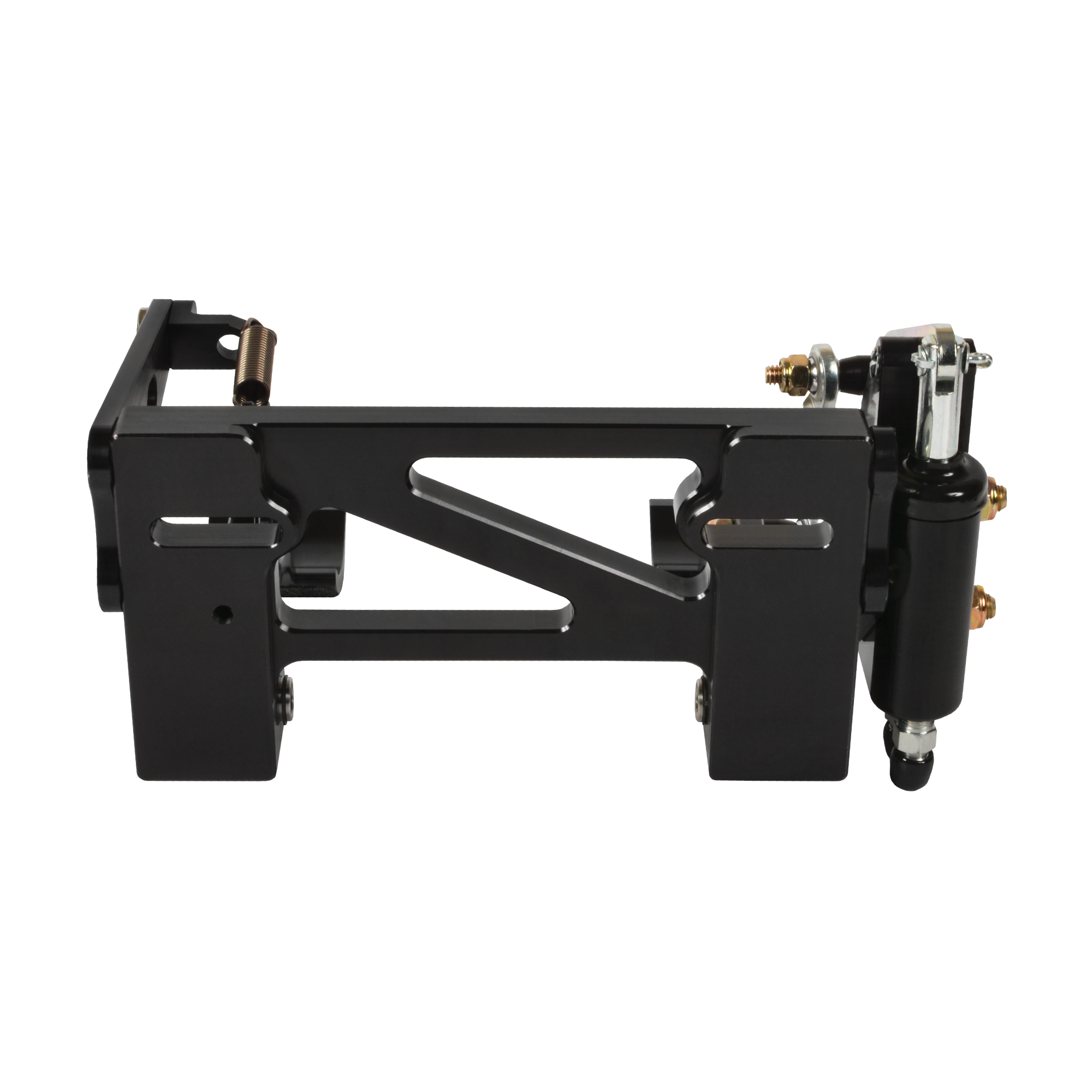

Mounting is made easy with a two-bolt location system that has one-inch slots to allow side to side adjustment if needed (using 5-1/2” spacing) or the slots can be used to adapt to other two bolt systems ranging from 5-1/2” t 6-1/2” widths.

Manufactured using from 6061-T6 Aluminum for durability and reliability in typical racing environments.
