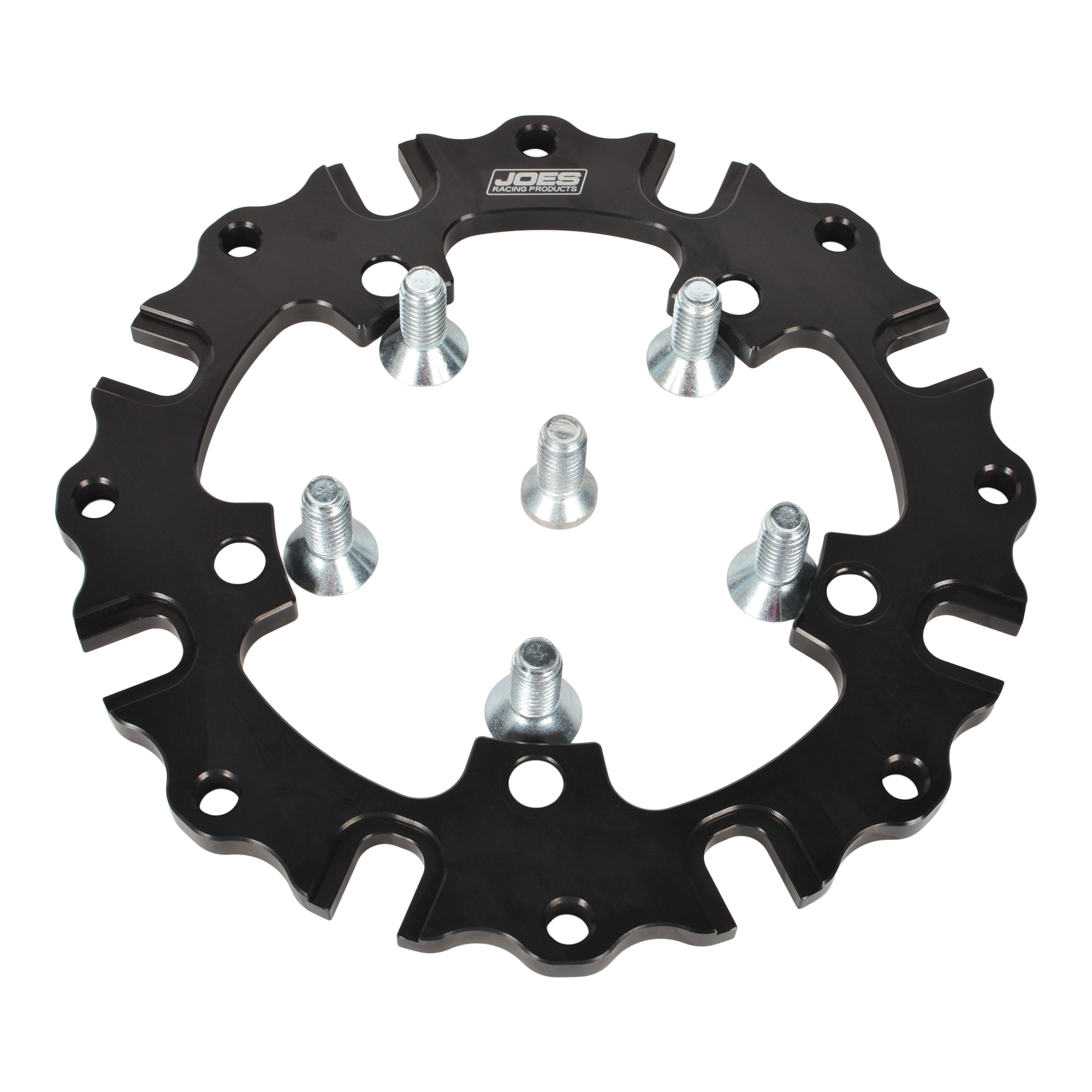

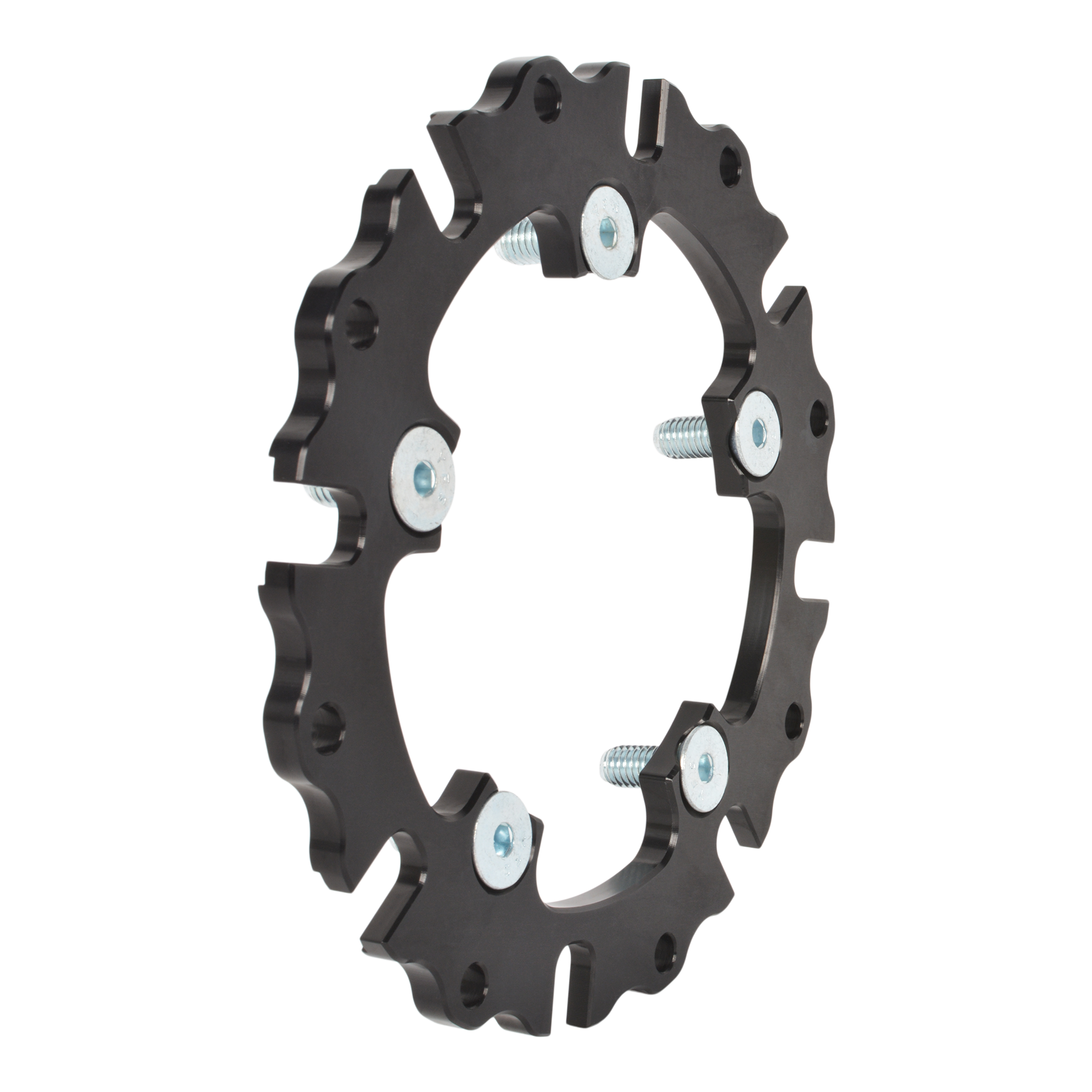

JOES Billet Rotor Adapter Flange fits on our 5×5 and Wide 5 Accelerator hubs. It has been designed to work with direct bolt on rotors as well as standard 8 bolt floating rotors that incorporate a T-Nut design. The inner flange that bolts to the hub is countersunk to allow clearance for 16 bolt axle tube snouts. (screws are included).
When utilizing our Rotor Plates with Floating Rotors, the hardened T-Nuts will self center in the rotor flange. The slotted rotor flange and T-Nuts allow a small amount of movement to allow your rotor to grow and shrink throughout the race. As the rotor heats and cools, the T-Nuts prevent warping related to heat expansion resulting in a smooth and firm pedal throughout the race. This will increase rotor and pad life.
- T-Nuts sold separately (25155)
- T-Nuts torque spec = 24 ft lbs
- Inner locating flange diameter is 6⅜”
- Flange to hub mount bolt circle – 5 x 4⅞”
- ⅜-16 Bolts mount the flange to the hub
- Flange Bolt to Hub torque spec = 33 ft lbs
- 8 Bolt Rotor bolt circle is 8 x 7.0″ using 5/16″ hardware
