SPECIFICALLY MADE TO FIT U.S. LEGENDS CARS, MINI STOCKS, AND OTHER 4 LUG CLASSES
SOLD INDIVIDUALLY (qty 1 = 1 plate)

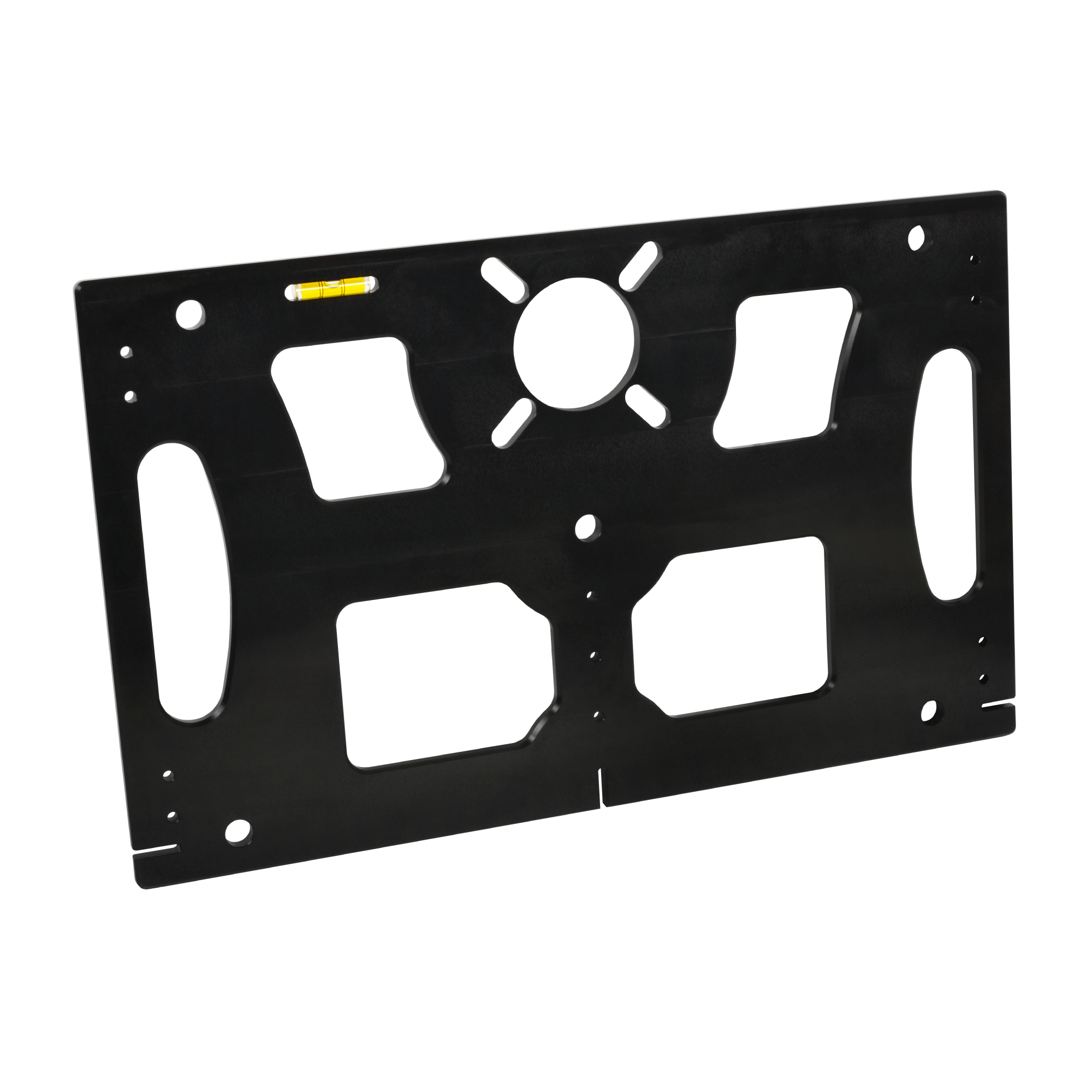

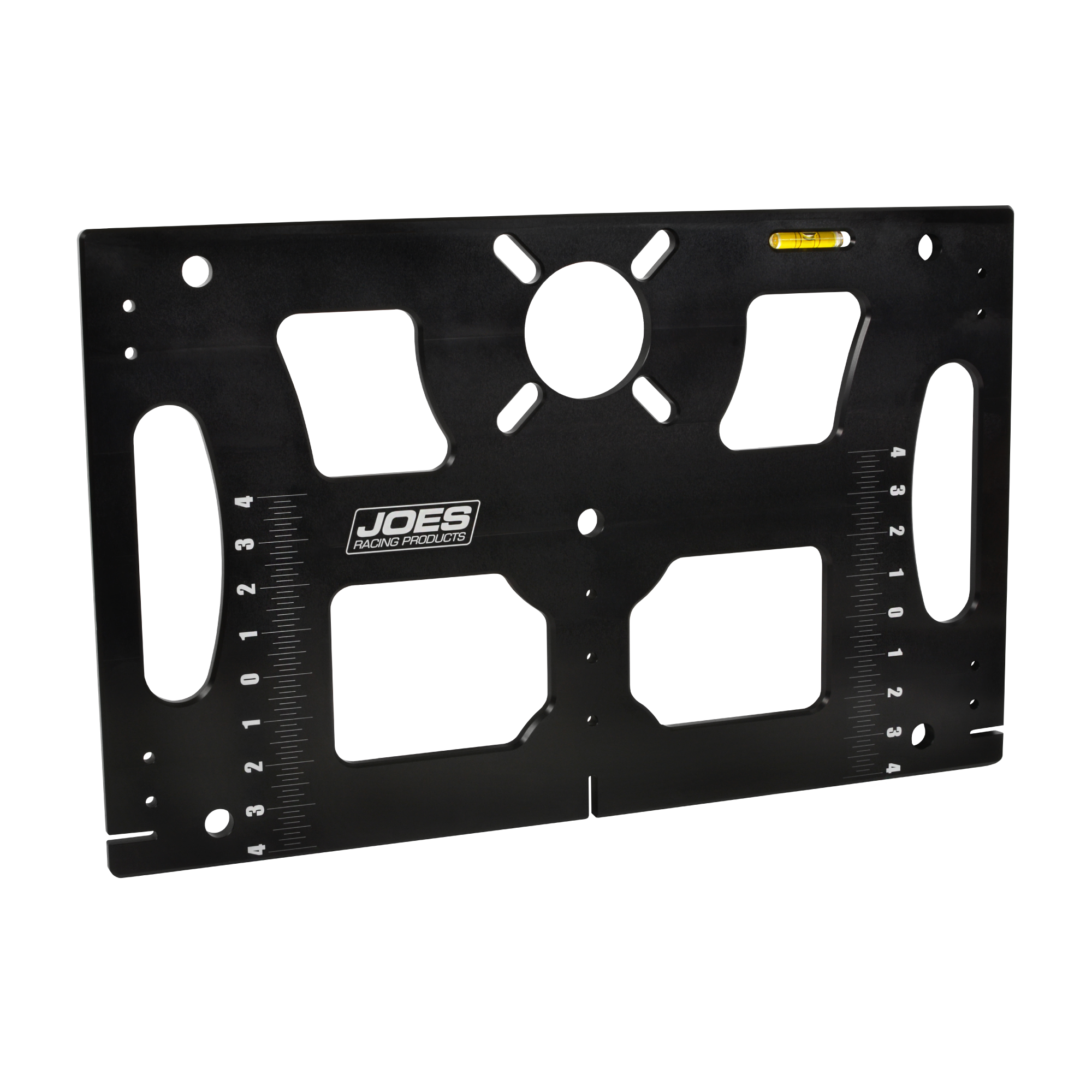

JOES Billet Aluminum Setup Plate is the perfect tool to help you accurately measure important aspects of your car like toe, wheelbase, yaw, rear toe, and bump steer. Use this plate along with our P/N 32504 4 Lug Plate with Swivel adapter so you can ‘clock’ the plate when checking locked rear ends
Machined flat, with multiple lug patterns, our plates are best used with your car on stands, springs removed, and setup sticks installed with your suspension at full compression where it matters most. JOES Setup Plate Squaring Pegs are available separately so you can string your car to help with suspension angles.
New – Laser marked 1/8″ increment bump steer measurements!
- Plates sold individually
- Slots have a 60° edge taper on one side to match your lug nut and locate your 4 Lug Billet Set Up Plate onto your hub
- Slots are machined to ⁹/₁₆” wide to accommodate 12mm, ½” and 14mm Studs
- Will fit anywhere from 4 on 3.937(100mm) up to 4 on 5.512(140mm)
- Machined flat
- Made in USA
- Setup Plate Squaring Pegs come in pairs and are sold separately (P/N 32502)
