BMRS Smooth Bore Power Steering Line

• Low Volumetric Expansion at Maximum Operating Pressure
• Able to Operate at High Pressure and High Temperature
• Compatible with Virtually All Fluids
• Robust and Durable Hytrel TPE Sheath

• Use with SB (Crimp) and SBR (Reusable) fittings

Applications:

• Brakes
• Hydraulics Systems (Clutch, Gearbox,Power Steering, etc.)
• All Air and Gas Applications
• Gauge, Instrumentation and Sensor Lines

Specifications:

• Innercore: Smooth Bore Extruded PTFE with Static Dissipating Liner Option

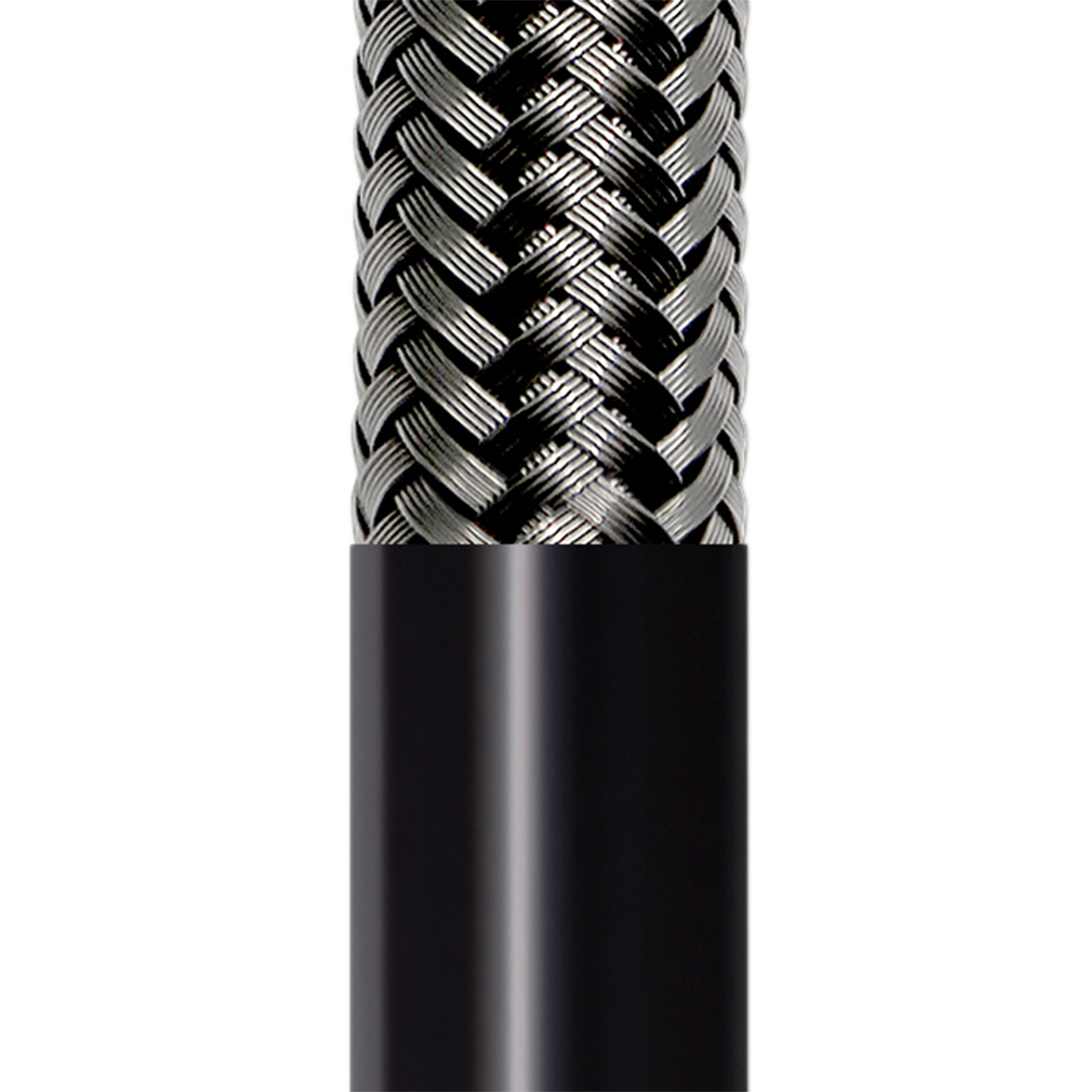

• Braid: 304 Series Stainless Steel with Black TPE Thermoplastic Elastomer sheath

• Operating Temperature: -65°C to 150°C (-85°F to 302°F) at Full Pressure and Full Vacuum
• Hose Size: ⅜”

Notes:

• Complies with rules requiring stainless steel braided hose to be used for fuel pressure gauge lines.
• TPE Sheath adds a high level of abrasion protection for both the hose as well as chassis components or carbon fiber parts.
• Black TPE also serves as a decorative covering for the hose.
